Compare Motherboards

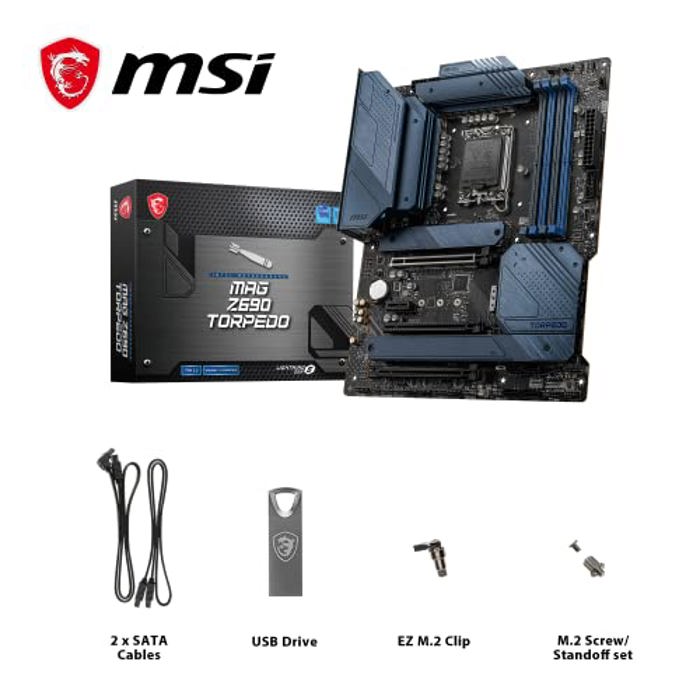

MSI MAG Z690 TORPEDO vs MAG B560 Torpedo

Save comparison
Prices
(Change region)
Prices
(Change region)
Show 3 more offers
* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)
* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Brand
MSI
Brand
MSI
Model
MAG Z690 TORPEDO
Model
MAG B560 TORPEDO
Release Date
-
Release Date
📅 February 2021
* First availability for purchase, it may not correspond to the actual market launch date.
User reviews
User reviews
★★★★★
(2 reviews)
Price history
View Details ►
Price history
View Details ►
Supported PC parts
Supported PC parts
Socket
LGA1700
Socket
LGA1200
Form factor
ATX
Form factor
ATX
Chipset
Intel Z690
Chipset
Intel B560
Supported Memory
DDR5
4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz
Supported Memory
DDR4
2133Mhz 2400Mhz 2666Mhz 2933Mhz 3000Mhz 3200Mhz 3333Mhz 3466Mhz 3600Mhz 3733Mhz 4000Mhz 4266Mhz 4600Mhz 5066Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
ECC RAM Support
Audio Chipset
-
Audio Chipset
Realtek ALC897
Audio Channels
-
Audio Channels
7.1 Channels
LAN Chipset
-
LAN Chipset
Realtek 8125B
Max LAN Speed
-
Max LAN Speed
10/100/1000/2500Mbps + 10/100/1000Mbps
SLI Support
No
SLI Support
No
CrossFire Support
Yes
CrossFire Support
Yes
RAID Support
Yes
RAID Support
No
Back I/O Ports
-
Back I/O Ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Optical S/PDIF Out
  • 1 x USB 3.2 Gen 2x2 Type-C
  • 2 x LAN (RJ45)
  • 4 x USB 2.0/1.1
  • 4 x USB 3.2 Gen 1 Type-A
  • 5 x Audio Jacks
Wireless LAN
No
Wireless LAN
No
PCI-Express x16 Slots
3
PCI-Express x16 Slots
2
PCI-Express x4 Slots
0
PCI-Express x4 Slots
0
PCI-Express x1 Slots
1
PCI-Express x1 Slots
1
SATA 6 Gbps Ports
6
SATA 6 Gbps Ports
6
SATA Express Ports
0
SATA Express Ports
0
M.2 Ports
4
M.2 Ports
3
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 - M Key
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only)
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 - M Key
RAM Slots
4
RAM Slots
4
Maximum Supported RAM
192 GB
Maximum Supported RAM
128 GB
Onboard USB 2.0
2
Onboard USB 2.0
2
Onboard USB 3.2 Gen 1
1
Onboard USB 3.2 Gen 1
1
Onboard USB 3.2 Gen 2
1
Onboard USB 3.2 Gen 2
1
Onboard USB 3.2 Gen 2x2
0
Onboard USB 3.2 Gen 2x2
0

What are the differences between MSI MAG Z690 TORPEDO and MAG B560 Torpedo? Analyze head-to-head all specifications and features to find out the better motherboard.

Comparison and key differences summary

⛔ You are comparing motherboards with different sockets. They cannot support the same CPUs. Try to compare motherboards within the same platform.

Reasons to pick the MSI MAG Z690 TORPEDO:

  • Supports RAID.
  • +1 Slots PCI-E x16.
  • +1 Ports M.2.
  • +64 GB maximum RAM supported.

Buy now

Reasons to pick the MAG B560 Torpedo:

  • 19% cheaper, you can save $62.62.

Buy now

Have you found incorrect information on this page? Contact us and we will fix it as soon as possible.
