AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 RAM - Specs, Compare Prices

AddOn - Upgrades 16GB 240-Pin DDR3 ECC Registered DDR3 1600 (PC3 12800) System Specific UCS-MR-1X162RZ-A-AM

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$78.99 + $3.99 Shipping	+ $3.99	Buy
Out of Stock	Out of Stock	$146.00 + $8.00 Shipping	+ $8.00	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

AddOn - Memory Upgrades 16GB 240-Pin DDR3 SDRAM ECC Registered DDR3 1600 (PC3 12800) System Specific Memory Model UCS-MR-1X162RZ-A-AM Voltage: 1.35V Compatible System: Cisco Cas Latency: 11 Rank: 2Rx4

AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 image 1

AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 image 2

AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 image 3

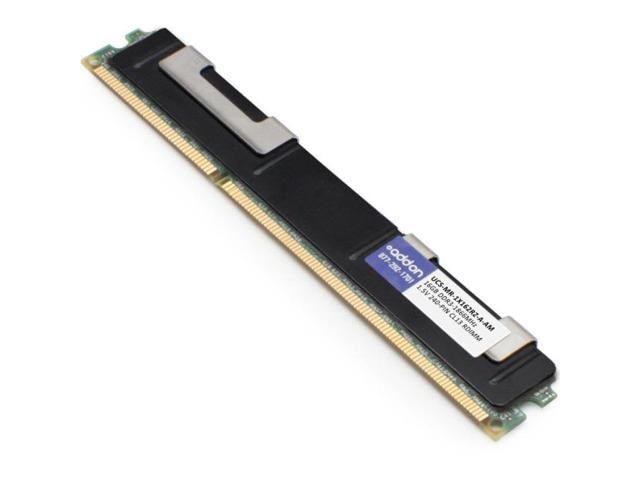

AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 image 4

AddOn - Upgrades 16GB DDR3 ECC Registered DDR3 1600 image 5

Specifications Overview

Model	UCS-MR-1X162RZ-A-AM
Type	240-pin DDR3 DIMM
Speed	DDR3-1600 MHz
Size	16GB (1 x 16GB)
CAS Latency	13
First Word Latency	16.25 ns
Voltage	1.5 V
Heat Spreader	No
ECC Support	Yes

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	1066	1333	1600	1866	2000	2133	2400	2666	2800	2933	3000	3100	3200
7	13.13	10.50	8.75	7.50	7.00	6.56	5.83	5.25	5.00	4.77	4.67	4.52	4.38
8	15.01	12.00	10.00	8.57	8.00	7.50	6.67	6.00	5.71	5.46	5.33	5.16	5.00
9	16.89	13.50	11.25	9.65	9.00	8.44	7.50	6.75	6.43	6.14	6.00	5.81	5.63
10	18.76	15.00	12.50	10.72	10.00	9.38	8.33	7.50	7.14	6.82	6.67	6.45	6.25
11	20.64	16.50	13.75	11.79	11.00	10.31	9.17	8.25	7.86	7.50	7.33	7.10	6.88
12	22.51	18.00	15.00	12.86	12.00	11.25	10.00	9.00	8.57	8.18	8.00	7.74	7.50
13	24.39	19.50	16.25	13.93	13.00	12.19	10.83	9.75	9.29	8.86	8.67	8.39	8.13
14	26.27	21.01	17.50	15.01	14.00	13.13	11.67	10.50	10.00	9.55	9.33	9.03	8.75
15	28.14	22.51	18.75	16.08	15.00	14.06	12.50	11.25	10.71	10.23	10.00	9.68	9.38
16	30.02	24.01	20.00	17.15	16.00	15.00	13.33	12.00	11.43	10.91	10.67	10.32	10.00
17	31.89	25.51	21.25	18.22	17.00	15.94	14.17	12.75	12.14	11.59	11.33	10.97	10.63
18	33.77	27.01	22.50	19.29	18.00	16.88	15.00	13.50	12.86	12.27	12.00	11.61	11.25
19	35.65	28.51	23.75	20.36	19.00	17.82	15.83	14.25	13.57	12.96	12.67	12.26	11.88

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
