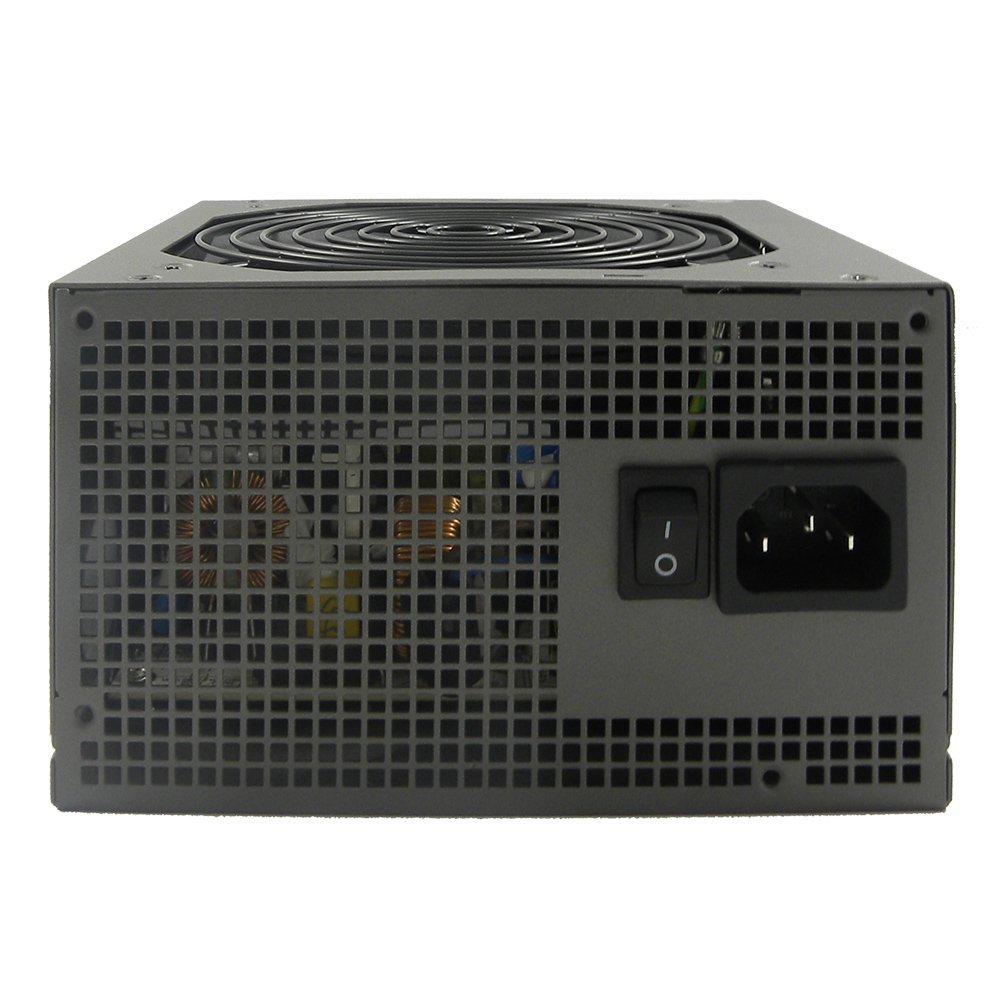

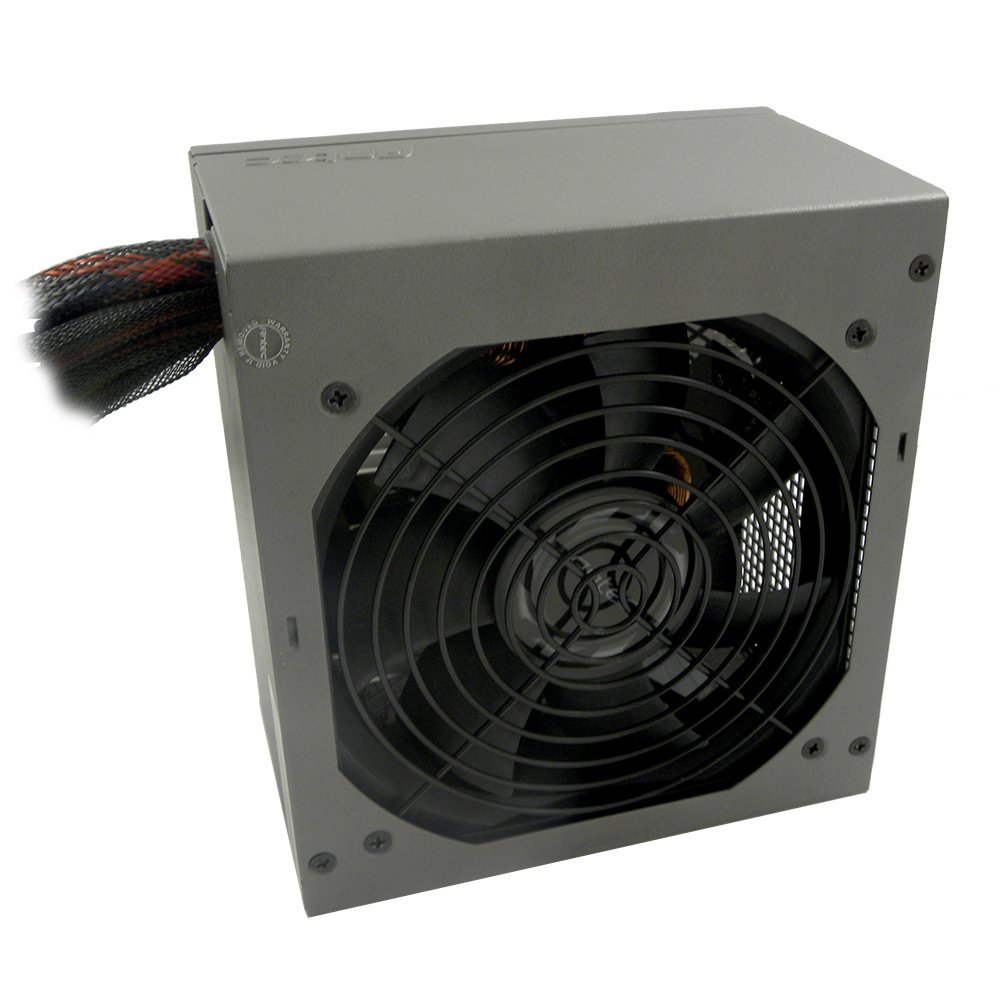

Antec Neo Eco 520C Power Supply

Name: Antec Neo Eco 520C
Brand: Antec
SKU: NEO ECO 520C
Rating: 4.8 (5 reviews)

Antec Neo Eco 520C 80 PLUS Bronze 520W

★★★★★

(5 reviews)

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Get economical power today with the NeoECO C Series, Antec's high-efficiency power supply solution. Featuring 80 PLUS BRONZE certification, a quiet double ball bearing 120mm fan, and universal input with active power factor correction (PFC), the NeoECO C series gives you a cooler, quieter system all powered by Continuous Power. The NeoECO C series also features industrial safety protection, including short circuit and over voltage protection, for stable and reliable power no matter what.

Specifications Overview

Model	NEO ECO 520C
Release Date	September 2013 * First availability for purchase, it may not correspond to the actual market launch date.
Wattage	520 W
Type	ATX
Modular	No
Efficiency	80+
Output	+3.3V@24A, +5V@24A, +12V@40A, -12V@0.8A, +5VSB@2.5A
PCI-Express 16 Pin 12VHPWR Connectors	0
PCI-Express 12 Pin Connectors	0
PCI-Express 6+2 Pin Connectors	1
PCI-Express 6 Pin Connectors	1
EPS Connectors	1
SATA Connectors	6
Molex Connectors	6
Length	150 mm

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Pros

Excellent ripple suppression
Good voltage regulation
80 PLUS Bronze

Cons

A bit loud at high load
Not modular

Description

520W Continuous Power - Guaranteed 520W of Continuous Power from Antec
80 PLUS® BRONZE certified - Up to 87% efficient, to reduce your electricity bill
AQ3 - Antec Quality 3 year warranty and lifetime global 24/7 support
120 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
Multi PCI-E - 2 PCI-E connectors for multiple GPU support
CircuitShield™ - Full suite of industrial grade protections:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
Japanese Heavy-duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
