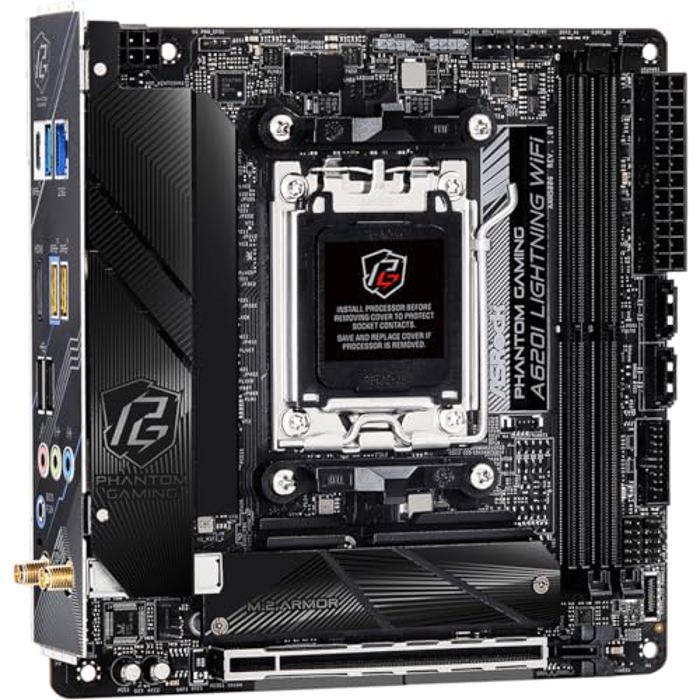

ASRock A620I LIGHTNING WIFI Motherboard

ASRock A620I LIGHTNING WIFI AM5 Ryzen7000 AMD A620 SATA 6Gb/s Mini ITX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$210.03 + $29.99 Shipping	+ $29.99	Buy
In Stock	In Stock	$260.81	-	Buy
Last updated 6 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASRock 620I LIGHTNING WIFI AM5 Ryzen7000 AMD A620 SATA 6Gb/s Mini-ITX Dual Channel DDR5 - 2.5G LAN, 802.11ax Wi-Fi 6E Module PCIe 4.0 x16 Slot Motherboards - AMD Number of Memory Slots: Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 96GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Memory Standard: DDR5 6400 Audio Channels: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio Max LAN Speed: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG

Specifications Overview

Model	A620I LIGHTNING WIFI 90-MXBMN0-A0UAYZ
Socket	AM5
Form factor	Mini ITX
Chipset	AMD A620
Supported Memory	DDR5 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)* 1 x USB 3.2 Gen1 Type-A Port* 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone * USB32_23 are Lightning Gaming Ports.
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	2
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2280 - M Key 2280 - M Key 2230 - E Key
RAM Slots	2
Maximum Supported RAM	96 GB
Onboard USB 2.0	1
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
