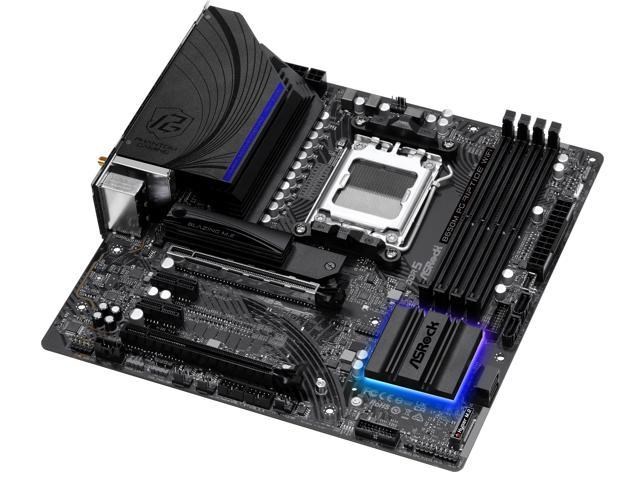

ASRock B650M PG RIPTIDE WIFI Motherboard

ASRock B650M PG RIPTIDE WIFI AM5 DDR5 Micro ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$149.99 +Free shipping	+Free	Buy
In Stock	In Stock	$158.99	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASRock B650M PG RIPTIDE WIFI AM5 Ryzen 7000 AMD B650 SATA 6Gb/s DDR5 Micro ATX Motherboard Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express x1: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* * Supports NVMe SSD as boot disks Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel CPU Type: Supports AMD Ryzen 7000 Series Processors

Specifications Overview

Model	B650M PG RIPTIDE WIFI
Socket	AM5
Form factor	Micro ATX
Chipset	AMD B650
Supported Memory	DDR5 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.) 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	2
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2260 / 2280 - M Key 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
