ASRock B760 Pro RS Motherboard

ASRock B760 Pro RS LGA 1700 DDR5 ATX

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$149.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$176.16	-	Buy
Last updated 45 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASRock B760 Pro RS LGA 1700 DDR5 ATX Motherboard Memory Standard: DDR5 4800 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* PCI Express 3.0 x16: 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* Max LAN Speed: 2.5Gbps CPU Type: Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)

Specifications Overview

Model	B760 Pro RS
Socket	LGA1700
Form factor	ATX
Chipset	Intel B760
Supported Memory	DDR5 4800Mhz 5600Mhz 6000Mhz 7200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No

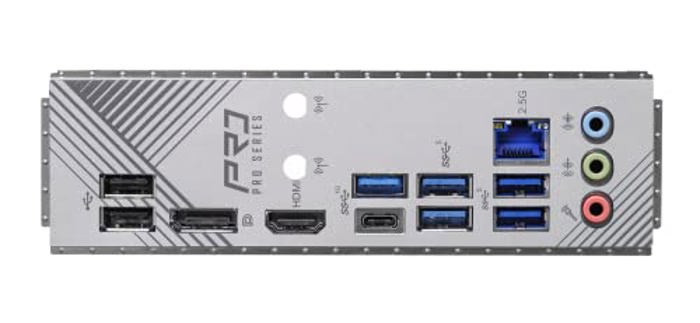

Back I/O Ports	2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
Wireless LAN	No
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2260 / 2280 - M Key 2260 / 2280 - M Key 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	1
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
