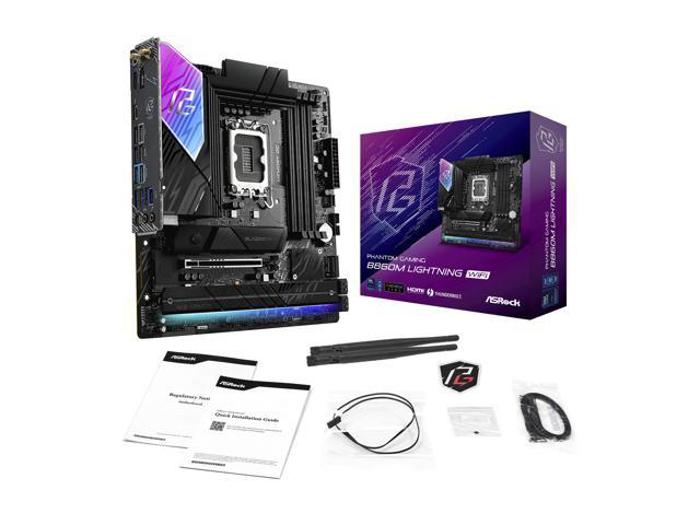

ASRock B860M Lightning WiFi Motherboard

ASRock Phantom Gaming B860M Lightning WiFi LGA1851 Micro ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$201.44 + $14.99 Shipping	+ $14.99	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

ASRock Phantom Gaming B860M Lightning WiFi LGA 1851 Intel B860 SATA 6Gb/s DDR5 Intel Core Ultra Micro ATX Motherboard Memory Standard: Up to DDR5 8666+(OC) Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 256GB Channel Supported: Dual Channel

Specifications Overview

Model	B860M Lightning WiFi
Release Date	January 2025 * First availability for purchase, it may not correspond to the actual market launch date.
Series	Phantom Gaming
Socket	LGA1851
Form factor	Micro ATX
Chipset	Intel B860
Supported Memory	DDR5 6400Mhz 6800Mhz 7000Mhz 7200Mhz 7600Mhz 7800Mhz 8000Mhz 8200Mhz 8400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 CH HD Audio with Content Protection
LAN Chipset	Killer E3100G
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_34 support Ultra USB Power.
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	5
M.2 Devices support	2280 - M Key 2280 - M Key 2280 - M Key 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
