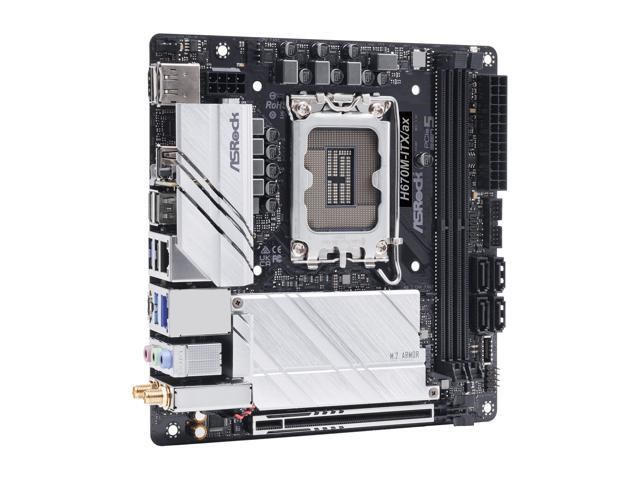

ASRock H670M-ITX/ax Motherboard

ASRock H670M-ITX/ax mini-ITX

ASRock H670M-ITX/ax mini-ITX

Seller Price
In Stock
$169.99
+Free shipping
Buy
Out of Stock
$214.00
+Free shipping
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)


Price Alert

$
Price alerts are not available for Amazon.
  • ASRock H670M-ITX/AX LGA 1700 Intel H670 SATA 6Gb/s DDR4 Mini ITX Motherboard Memory Standard: DDR4 up to 5000+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Number of Memory Slots: 2x288pin (DDR4) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16* * Supports PCIe riser cards to extend one x16 slot to two x8 slots. * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors Supported CPU Technologies: Turbo Boost Technology 3.0

Specifications Overview

Model H670M-ITX/ax
Socket LGA1700
Form factor Mini ITX
Chipset Intel H670
Supported Memory DDR4
2133Mhz 2400Mhz 2666Mhz 2933Mhz 3000Mhz 3200Mhz 3466Mhz 3600Mhz 3733Mhz 3800Mhz 4000Mhz 4200Mhz 4266Mhz 4400Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
LAN Chipset Dragon RTL8125BG
Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
SLI Support
CrossFire Support
RAID Support
Back I/O Ports
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 2 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
  • 4 x USB 2.0 Ports (Supports ESD Protection)
  • 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Wireless LAN
Wi-Fi Generation 6
PCI-Express x16 Slots 1
PCI-Express x4 Slots 0
PCI-Express x1 Slots 0
SATA 6 Gbps Ports 4
SATA Express Ports 0
M.2 Ports 3
M.2 Devices support
  • 2280 - M Key
  • 2280 - M Key
  • 2230 - E Key
RAM Slots 2
Maximum Supported RAM 128 GB
Onboard USB 2.0 1
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 1
