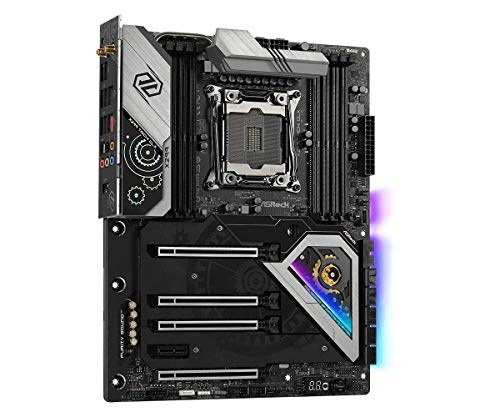

ASRock X299 Taichi CLX Motherboard

ASRock X299 Taichi CLX LGA2066 256GB DDR4 PCI Express SATA ATX

ASRock X299 Taichi CLX LGA2066 256GB DDR4 PCI Express SATA ATX

★ ★ ★ ☆ ☆
(7 reviews) Add a product review
Seller Price
Out of Stock
$408.99
+Free shipping
Buy
Out of Stock
$466.59
+Free shipping
Buy
In Stock
$559.99
+Free shipping
Buy
-
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$
Price alerts are not available for Amazon.
  • XXL ALUMINUM ALLOY HEATSINK & HEATPIPE DESIGN Extra-Large Aluminum Alloy Heatsink Along With

Specifications Overview

Model X299 Taichi CLX
Release Date November 2019

* First availability for purchase, it may not correspond to the actual market launch date.

Socket LGA2066
Form factor ATX
Chipset Intel X299
Supported Memory DDR4
2133Mhz 2400Mhz 2666Mhz 2800Mhz 2933Mhz 3200Mhz 3600Mhz 3733Mhz 3800Mhz 4000Mhz 4200Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
LAN Chipset Dragon RTL8125AG
Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
SLI Support
CrossFire Support
RAID Support
Back I/O Ports
  • 2 x Antenna Ports
  • 1 x Optical SPDIF Out Port
  • 2 x USB 2.0 Ports (Supports ESD Protection)
  • 1 x USB 3.2 Gen2x2 Type-C Port (20Gb/s) (ASMedia ASM3242) (Supports ESD Protection)
  • 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • 1 x Clear CMOS Button
  • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
  • * Ultra USB Power is supported on USB3_3_4 ports.
  • * ACPI wake-up function is not supported on USB3_3_4 ports.
Wireless LAN
PCI-Express x16 Slots 4
PCI-Express x4 Slots 0
PCI-Express x1 Slots 1
SATA 6 Gbps Ports 10
SATA Express Ports 0
M.2 Ports 4
M.2 Devices support
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2230 - E Key
RAM Slots 8
Maximum Supported RAM 256 GB
Onboard USB 2.0 2
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 1
