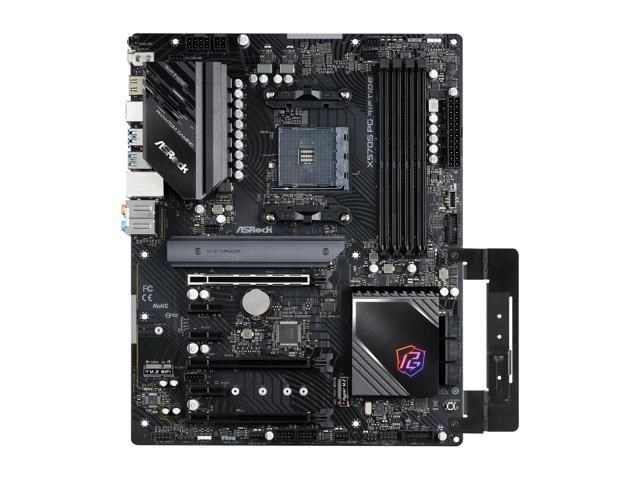

ASRock X570S PG RIPTIDE Motherboard

Name: ASRock X570S PG RIPTIDE
Brand: ASRock
SKU: X570S PG RIPTIDE
Rating: 3.0 (4 reviews)

ASRock X570S PG RIPTIDE AM4 AMD X570 SATA 6Gb/s ATX

★★★☆☆

(4 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$500.00 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (5)

	X570 Pro4 $201.16
	X570 Steel Legend $255.86
	X570 Phantom Gaming 4 WiFi AX $169.99
	X570 Steel Legend WiFi AX $145.99
	Gaming Motherboard $184.01

AMD X570
Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Processors
DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))*
DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge))
DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Picasso))*
* For Ryzen Series APUs (Picasso and Renoir), ECC is only supported with PRO CPUs.

Specifications Overview

Model	X570S PG RIPTIDE
Socket	AM4
Form factor	ATX
Chipset	AMD X570
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2933Mhz 3200Mhz 3466Mhz 3600Mhz 3733Mhz 3800Mhz 3866Mhz 4000Mhz 4133Mhz 4200Mhz 4266Mhz 4333Mhz 4400Mhz 4533Mhz 4600Mhz 4666Mhz 4733Mhz 4800Mhz 4866Mhz 4933Mhz 5000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Killer E3100G
Max LAN Speed	10/100/1000/2500Mbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x Antenna Mounting Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button with LED HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
Wireless LAN	No
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	3
SATA 6 Gbps Ports	6
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2230 / 2242 / 2260 / 2280 - M Key 2230 / 2242 / 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
