ASRock X870 LiveMixer WiFi Motherboard

ASRock X870 LiveMixer WiFi AM5 DDR5 8000+ (OC) Dual USB4 PCIe 5.0 WiFi 7 16+2+1 Power Phase 5GbE LAN ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$189.99	-	Buy
Last updated 41 minutes ago.
In Stock	In Stock	$199.99 +Free shipping	+Free	Buy
In Stock	In Stock	$211.99	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

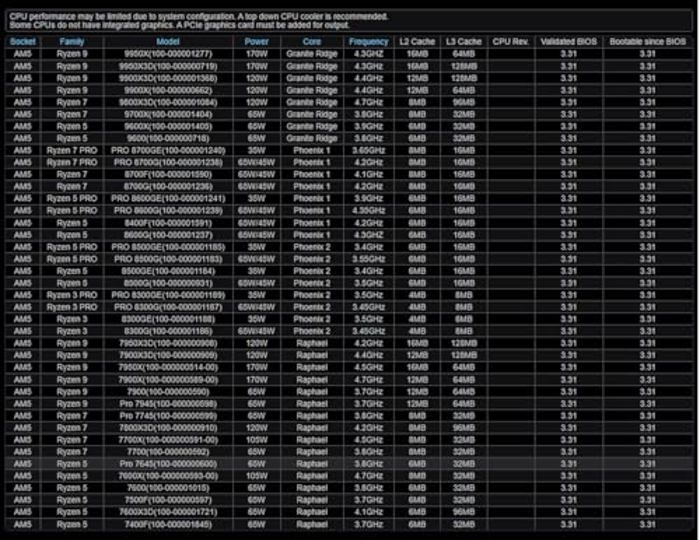

Next-Gen AMD AM5 Platform: Supports AMD Ryzen 9000, 8000, and 7000 Series processors, featuring a unique LiveMixer aesthetic with vibrant design elements
Extreme Power Delivery: 16+2+1 power phase design with 80A Dr.MOS for VCore, SOC, and MISC ensures uncompromising stability for overclocking and high-performance computing
Cutting-Edge Memory Support: Four DDR5 DIMM slots support dual-channel configurations and overclocked speeds up to 8000+ (OC) for maximum system responsiveness
Dual USB4 Connectivity: Features two rear USB4 Type-C ports with 40Gbps data transfer and DisplayPort Alt Mode, plus HDMI for versatile display options
Advanced Storage Solution: Includes two Blazing M.2 (PCIe Gen5x4) slots and two Hyper M.2 (PCIe Gen4x4) slots with toolless multi-layer heatsinks for optimal thermal performance
Premium Networking Suite: Equipped with Realtek 5GbE LAN and next-generation WiFi 7 with Bluetooth for unparalleled wired and wireless connectivity
Comprehensive USB Expansion: Extensive connectivity including front and rear USB Type-C ports, 11 USB 3.2 Gen1 ports, and 10 USB 2.0 ports for all peripheral needs
High-Fidelity Audio: Realtek ALC4082 7.1 CH HD Audio Codec enhanced with Nahimic Audio delivers immersive sound quality for gaming and entertainment

Specifications Overview

Model	X870 Livemixer WiFi
Socket	AM5
Form factor	ATX
Chipset	AMD X870
Supported Memory	DDR5 4400Mhz 8000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Nahimic Audio
Max LAN Speed	5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 1 x USB 3.2 Gen1 Type-C Port 7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.) 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. If M2_2 is occupied both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting but doing so will disable USB4_TC1 and USB4_TC2.
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	2
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 - M Key 2280 - M Key 2280 - M Key 2230 / 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
