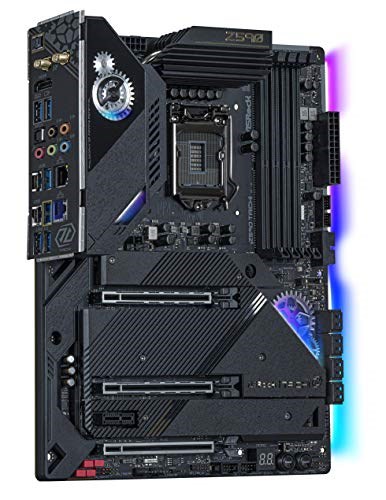

ASRock Z590 TAICHI Motherboard

ASRock Z590 TAICHI LGA 1200 ATX

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$149.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$349.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$451.27 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Intel Z590 Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)

Specifications Overview

Model	Z590 Taichi 90-MXBES0-A0UAYZ
Release Date	February 2021 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1200
Form factor	ATX
Chipset	Intel Z590
Supported Memory	DDR4 3466Mhz 3600Mhz 3733Mhz 3800Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz 4400Mhz 4800Mhz 5000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels
LAN Chipset	Killer E3100G
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 4.0 Thunderbolt 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)* 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging. USB3_5_6 is from Intel Z590; USB3_1 is from ASMedia ASM1042A; USB3_2 USB3_3 and USB3_4 are from ASMedia ASM1074 hub. Ultra USB Power is supported on USB3_3 port. ** ACPI wake-up function is not supported on USB3_3 port.
Wireless LAN	Yes
Wi-Fi Generation	6
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	6
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 - M Key 2260 / 2280 - M Key 2242 / 2260 / 2280 / 22110 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1
