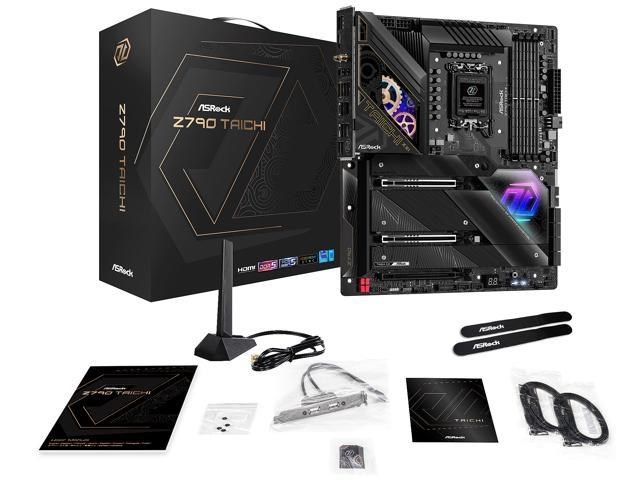

ASRock Z790 TAICHI Motherboard

ASRock Z790 TAICHI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 EATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$424.99	-	Buy
(Used from $319.30) Last updated 37 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASRock Z790 TAICHI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 EATX Intel Motherboard Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* 1DPC 1R Up to 7000+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. Supports Intel Extreme Memory Profile (XMP) 3.0 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* * If PCIE2 is occupied, M2_1 will be disabled. * If PCIE3 is occupied, SATA3_0~4 will be disabled. * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps

Specifications Overview

Model	Z790 TAICHI
Release Date	October 2022 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1700
Form factor	EATX
Chipset	Intel Z790
Supported Memory	DDR5 4000Mhz 4800Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC4082
Audio Channels	5.1 Channels
LAN Chipset	Killer E3100G
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.) 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	8
SATA Express Ports	0
M.2 Ports	6
M.2 Devices support	2280 - M Key 2280 - M Key 2260 / 2280 - M Key 2260 / 2280 - M Key 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1
