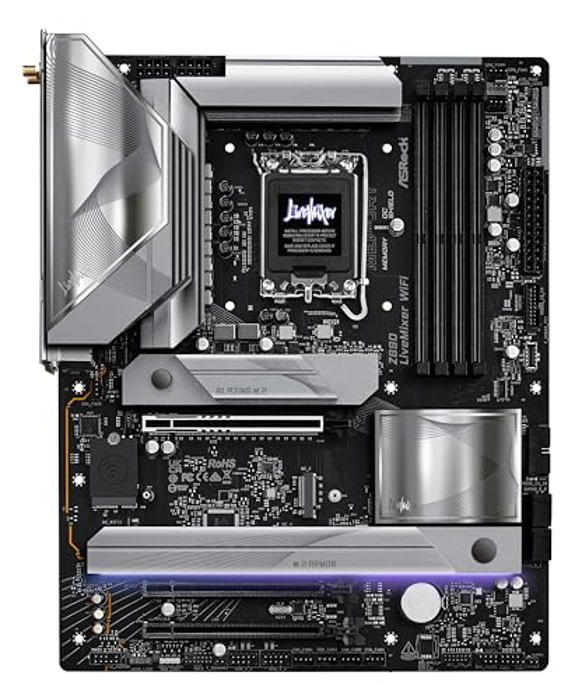

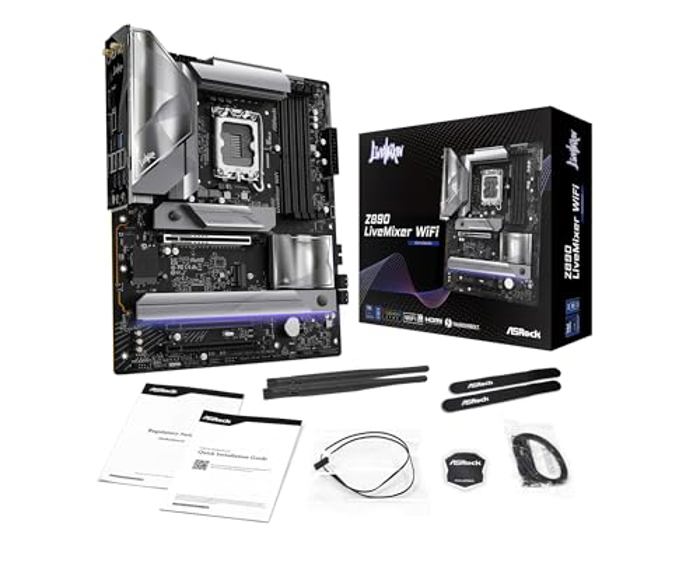

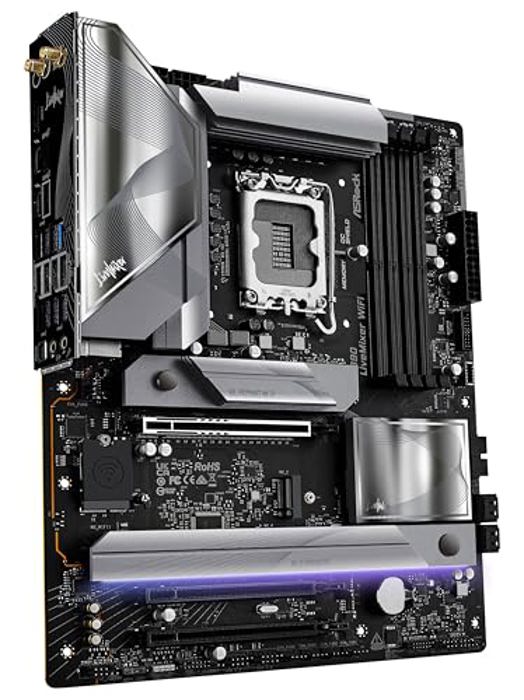

ASRock Z890 LiveMixer WiFi Motherboard

ASRock Z890 LiveMixer WiFi 7 DDR5 9066MHz LGA1851 M.2 Thunderbolt SATA3 6.0 Gb/s PCIe 5.0 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$209.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Supports Intel Core Ultra Processors (Series 2) (LGA1851)
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
4 x DDR5 DIMMs Supports Dual Channel, up to 9066+ (OC)
Dual ThunderboltTM 4 Type-C
Up to 23 USB Ports (Front + Rear)

Specifications Overview

Model	Z890 LiveMixer WiFi Z890 Live Mixer WiFi
Release Date	October 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1851
Form factor	ATX
Chipset	Intel Z890
Supported Memory	DDR5 4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7600Mhz 7800Mhz 8000Mhz 8200Mhz 8400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 CH HD Audio with Content Protection Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 10 x USB 3.2 Gen1 Ports** 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_56 are Lightning Gaming Ports. USB32_78 support Ultra USB Power
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	5
M.2 Devices support	2280 - M Key 2280 - M Key 2230 / 2242 / 2260 / 2280 - M Key 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
