ASUS AMD Radeon R9 390 DirectCU II Graphics Card

Name: ASUS AMD Radeon R9 390 DirectCU II
Brand: ASUS
SKU: R9390-DC2-8GD5
Rating: 4.2 (5 reviews)

ASUS AMD Radeon R9 390 DirectCU II 8GB GDDR5 R9390-DC2-8GD5

★★★★★

(5 reviews)

Seller	Availability	Price	Shipping	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASUS R9 390 delivers pumped gaming performance and extreme reliability
DirectCU II offers 20% cooler and 3X quieter performance.
DIGI+ VRM with 8-phase Super Alloy Power delivers precise digital power for superior efficiency, reliability, and performance.
GPU Tweak II with Xsplit Gamecaster provides intuitive performance tweaking and lets you stream your gamplay instantly.

ASUS AMD Radeon R9 390 DirectCU II image 1

ASUS AMD Radeon R9 390 DirectCU II image 2

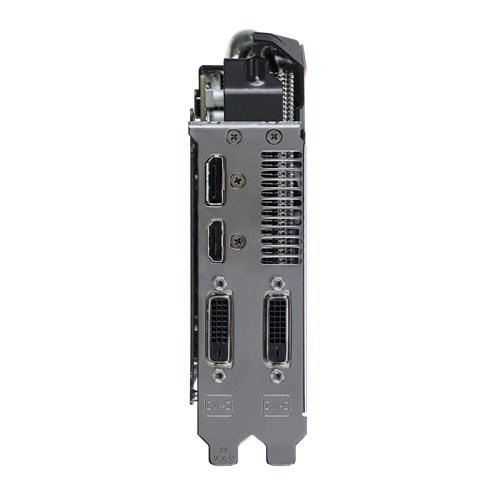

ASUS AMD Radeon R9 390 DirectCU II image 3

ASUS AMD Radeon R9 390 DirectCU II image 4

ASUS AMD Radeon R9 390 DirectCU II image 5

Specifications Overview

Model	R9390-DC2-8GD5 90YV08H0-M0NA00
Release Date	June 2015 * First availability for purchase, it may not correspond to the actual market launch date.
Series	AMD Radeon R9 300 Series
GPU Interface	PCIe x16
GPU Chipset	Radeon R9 390
GPU Memory Size	8 GB
GPU Memory Type	GDDR5
GPU Memory Interface	512-bit
GPU Clock Rate	1000 MHz
GPU Boost Clock Rate	-
TDP	275 W
Length	287 mm
Cooling Type	2 Fans
Power Connectors	1 PCIe 8-pin + 1 PCIe 6-pin
SLI Support	No
CrossFire Support	Yes
DVI-D (Dual Link)	2
DVI-I (Dual Link)	0
DisplayPort	1
HDMI	1
G-SYNC Support	No
FreeSync Support	Yes
Expansion slots required	2

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

ASUS AMD Radeon R9 390 DirectCU II Performance comparison with similar Graphics Cards

(Higher is better)

ASUS AMD Radeon R9 390 DirectCU II Performance

GPU Gaming Performance (Rasterization)

GeForce GTX 1060 6GB (68th)		111%
Radeon RX 590 (68th)		111%
Radeon RX 6500 XT (69th)		107%
Radeon R9 390X (70th)		105%
GeForce GTX 780 Ti (71st)		103%
Radeon RX 580 (72nd)		101%
GeForce GTX 1060 3GB (72nd)		101%
Radeon RX 5500 XT (73rd)		~
Radeon R9 290X (73rd)		~
Radeon R9 390 (73rd)		100%
GeForce GTX 970 (74th)		98%
Radeon R9 290 (75th)		90%
Radeon RX 480 (75th)		90%
GeForce GTX 780 (76th)		88%
Radeon RX 570 (76th)		88%
GeForce GTX 1650 G6 (77th)		84%
GeForce GTX 1650 G5 (77th)		84%
Arc A380 (78th)		82%
Radeon RX 470 (79th)		80%
Quadro P2000 (79th)		80%

View chart ►

Description

Graphics Engine
AMD Radeon R9 390
Bus Standard
PCI Express 3.0
OpenGL
OpenGL®4.4
Video Memory
GDDR5 8GB
Engine Clock
1000 MHz
Memory Clock
6000 MHz ( GDDR5 )
Memory Interface
512-bit
Resolution
Digital Max Resolution:4096x2160
Interface
DVI Output : Yes x 2 (Native) (DVI-D)
HDMI Output : Yes x 1 (Native)
Display Port : Yes x 1 (Native) (Regular DP)
HDCP Support : Yes
Power Consumption
up to 300Wadditional 6+8 pin PCIe power required
Accessories
1 x Power cable
Software
ASUS GPU Tweak II & Driver
Dimensions
11.3 " x 5.8 " x 1.6 " Inch
28.7 x 14.7 x4.06 Centimeter
