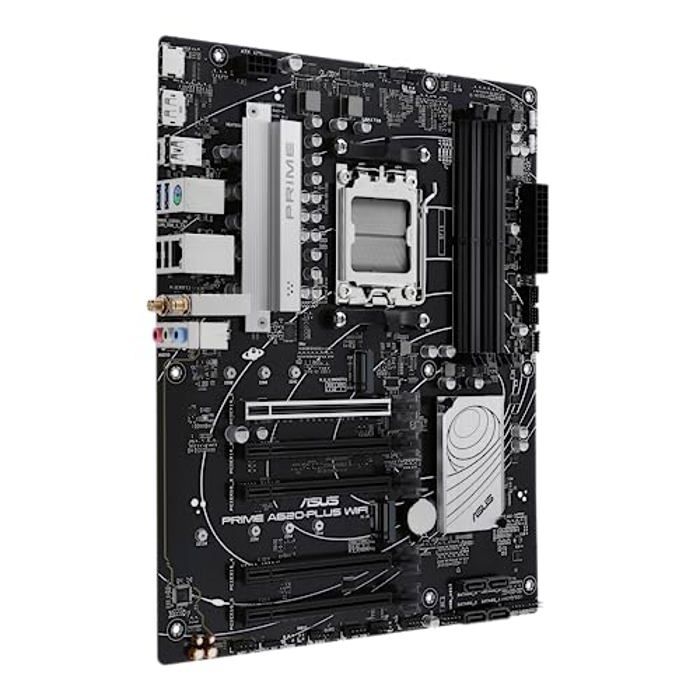

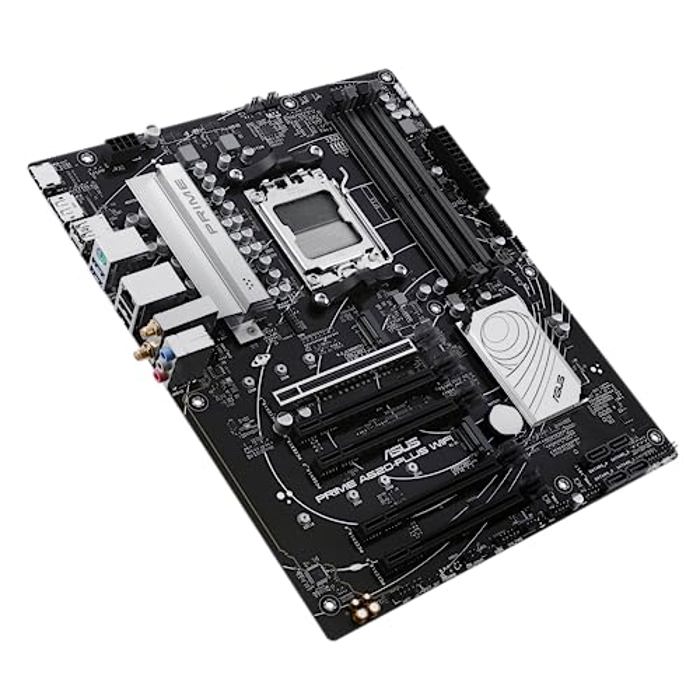

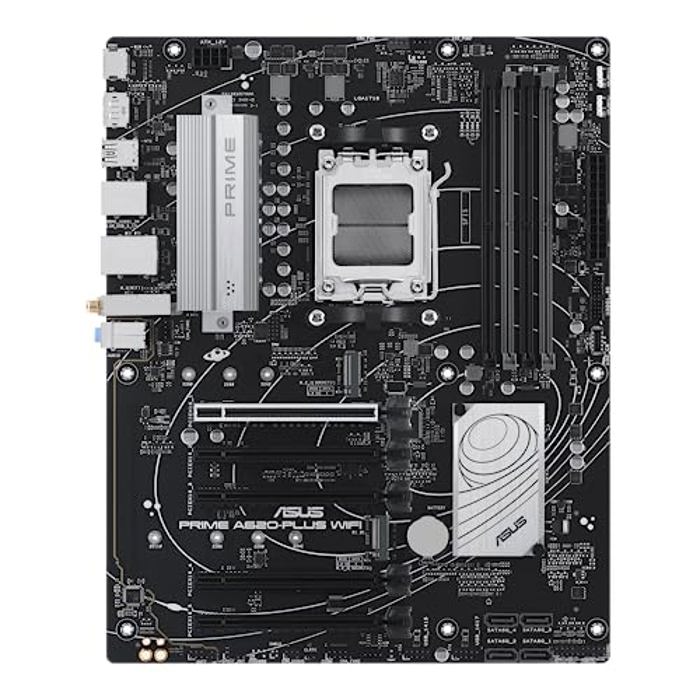

ASUS Prime A620-PLUS WiFi Motherboard

ASUS Prime A620-PLUS WiFi Socket AM5 Ryzen 7000 DDR5 Dual M.2 Slots USB 3.2 Gen 1 Type-C ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$139.99	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors
Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, Rear & Front USB 3.2 Gen 1 Type-C
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
CEC Tier Il ready

Specifications Overview

Model	PRIME A620-PLUS WIFI 90MB1FT0-M0AAY0
Release Date	July 2023 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	ATX
Chipset	AMD A620
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels
LAN Chipset	1 x Realtek 1Gb Ethernet
Max LAN Speed	1Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x USB 3.2 Gen 1 (5G) port (1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Wireless LAN	Yes
Wi-Fi Generation	5
PCI-Express x16 Slots	5
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 / 22110 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
