Name: Asus PRIME Z790M-PLUS D4
Brand: Asus
SKU: PRIME Z790M-PLUS D4

ASUS PRIME Z790M-PLUS D4 DDR4 PCIe 5.0 MicroATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$199.99	-	Buy
In Stock	In Stock	$240.19	-	Buy
(Used from $181.80) Last updated 17 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ASUS Prime Z790M-Plus D4 LGA 1700(Intel 12th&13th Gen) microATX motherboard (PCIe 5.0, 3xM.2 slots, 10+1 DrMOS, DDR4,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) support) Memory Standard: DDR4 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 4x288pin (DDR4) PCI Express 5.0 x16: Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the ASUS support site PCI Express 4.0 x16: Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Max LAN Speed: 1 x Intel 1Gb Ethernet ASUS LANGuard CPU Type: Supports 13th / 12th Gen Intel Cor...

Specifications Overview

Model	PRIME Z790M-PLUS D4 Z790M-PLUS D4 90MB1D20-M0AAY0
Release Date	October 2022 * First availability for purchase, it may not correspond to the actual market launch date.
Series	Prime
Socket	LGA1700
Form factor	Micro ATX
Chipset	Intel Z790
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2800Mhz 2933Mhz 3000Mhz 3200Mhz 3333Mhz 3400Mhz 3466Mhz 3600Mhz 3733Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz 4400Mhz 4500Mhz 4600Mhz 4700Mhz 4800Mhz 5000Mhz 5066Mhz 5133Mhz 5333Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC
Max LAN Speed	1 x Intel 1Gb EthernetASUS LANGuard
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No

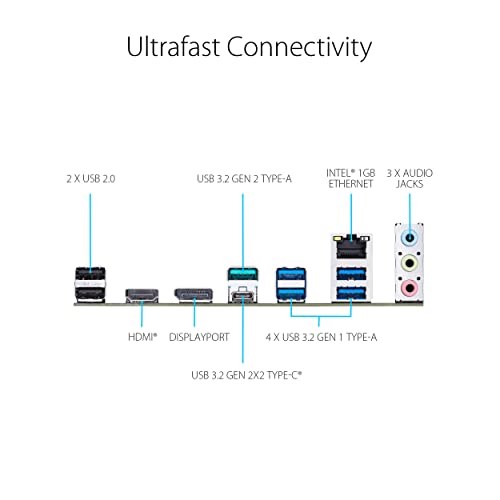

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks
Wireless LAN	No
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	2
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2242 / 2260 / 2280 - M Key 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
