ASUS ROG MAXIMUS Z790 DARK HERO Motherboard

ASUS ROG MAXIMUS Z790 DARK HERO (WiFi 7) LGA 1700 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$599.99	-	Buy
In Stock	In Stock	$713.45 + $29.99 Shipping	+ $29.99	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Intel LGA 1700 socket: Ready for Intel Core 13th Gen processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

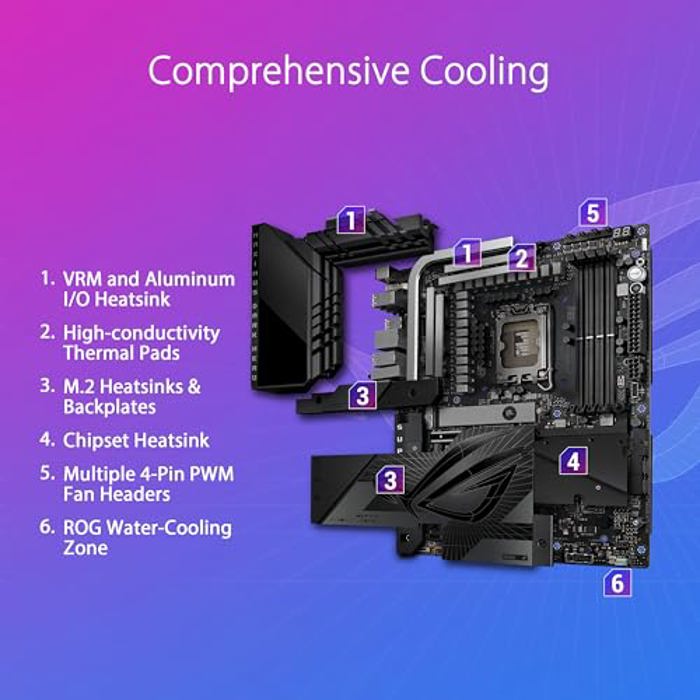

Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
Latest M.2 Support: Onboard PCIe 5.0 M.2 slot, and four PCIe 4.0 M.2 slots all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1

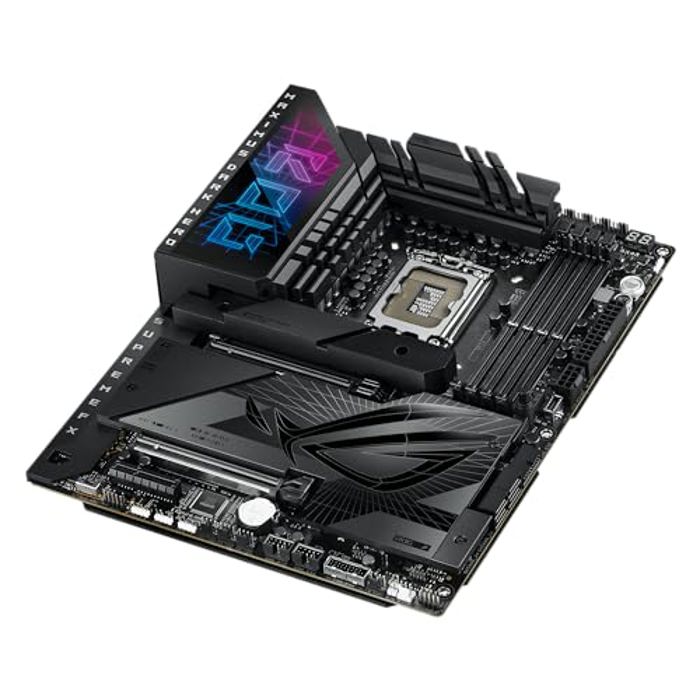

ASUS ROG MAXIMUS Z790 DARK HERO image 10

ASUS ROG MAXIMUS Z790 DARK HERO image 11

ASUS ROG MAXIMUS Z790 DARK HERO image 12

ASUS ROG MAXIMUS Z790 DARK HERO image 13

ASUS ROG MAXIMUS Z790 DARK HERO image 14

ASUS ROG MAXIMUS Z790 DARK HERO image 15

Specifications Overview

Model	ROG MAXIMUS Z790 DARK HERO 90MB1F90-M0AAY0 90MB1F90-M0EAY0 90MB1F90-MVAAY0
Release Date	October 2023 * First availability for purchase, it may not correspond to the actual market launch date.
Series	ROG
Socket	LGA1700
Form factor	ATX
Chipset	Intel Z790
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 8000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Max LAN Speed	1 x Intel® 2.5Gb EthernetASUS LANGuard
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x Thunderbolt™ 4 USB Type-C ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	2
PCI-Express x4 Slots	1
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	5
M.2 Devices support	2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2280 - M Key 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
