ASUS ROG Strix X870-A Gaming WiFi Motherboard

ASUS ROG Strix X870-A Gaming WiFi AM5 16+2+2 Power Stages DDR5 WiFi 7 4X M.2 PCIe 5.0 USB4 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$229.98	-	Buy
Last updated 58 minutes ago.
In Stock	In Stock	$249.99 +Free shipping	+Free	Buy
In Stock	In Stock	$299.99	-	Buy
Out of Stock	Out of Stock	$321.30 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$417.98	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (1)

ROG X670E-A WIFI 6E
$299.99

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 7000, 8000 and 9000 series desktop processors
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
Robust Power Solution: 16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
Abundant Connectivity: Dual USB4 Type-C ports, USB 20Gbps Type-C front-panel connector, one USB 10Gbps port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design: PCIe Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

ASUS ROG Strix X870-A Gaming WiFi image 1

ASUS ROG Strix X870-A Gaming WiFi image 2

ASUS ROG Strix X870-A Gaming WiFi image 3

ASUS ROG Strix X870-A Gaming WiFi image 4

ASUS ROG Strix X870-A Gaming WiFi image 5

ASUS ROG Strix X870-A Gaming WiFi image 6

ASUS ROG Strix X870-A Gaming WiFi image 7

ASUS ROG Strix X870-A Gaming WiFi image 8

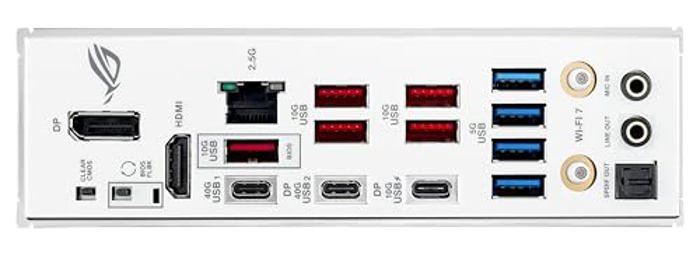

ASUS ROG Strix X870-A Gaming WiFi image 9

Specifications Overview

Model	ROG STRIX X870-A GAMING WIFI 90MB1IF0-M0AAY0
Release Date	September 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	ATX
Chipset	AMD X870
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 8000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps port(s) (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	2
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 / 22110 - M Key 2280 - M Key 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
