ASUS ROG Strix X870E-A Gaming WIFI7 NEO

ASUS ROG Strix X870E-A Gaming WIFI7 NEO 16+2+2 Power Stages DDR5 4x M.2 Slots PCIe 5.0 WiFi 7 Dual USB4 ATX

ASUS ROG Strix X870E-A Gaming WIFI7 NEO 16+2+2 Power Stages DDR5 4x M.2 Slots PCIe 5.0 WiFi 7 Dual USB4 ATX

Seller Price Buy
In Stock
$469.99
+Free shipping
Buy
In Stock
$471.37
Prime
Buy
Last updated 29 minutes ago.
In Stock
$473.90
+Free shipping
Buy
In Stock
$479.99
Buy
In Stock
$492.63
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$

Price alerts are not available for Amazon.

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
  • Exclusive AI Technologies: AI Cache Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
  • Exclusive Memory Technologies: NitroPath DRAM Technology, DIMM Fit Pro/DIMM Fit and AEMP to simplify setup and improve performance
  • ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement

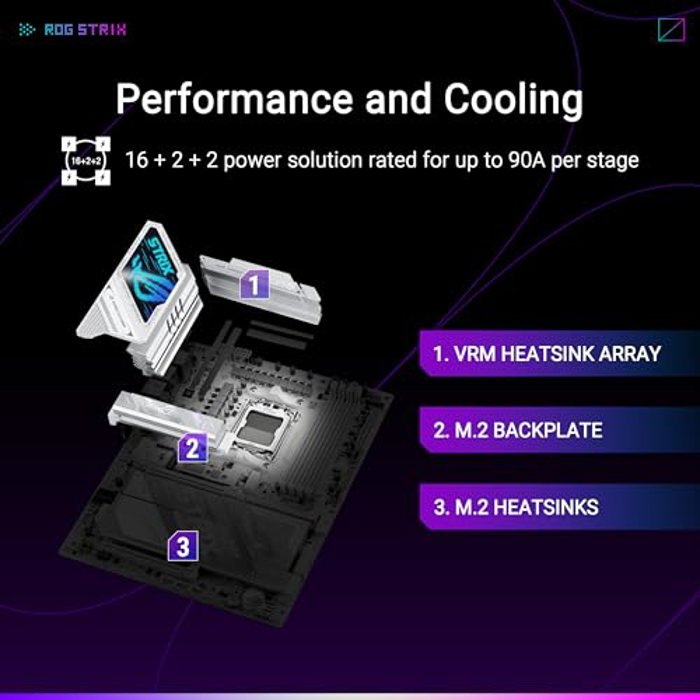

  • Robust Power Solution: 16+2+2 power solution rated for up to 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

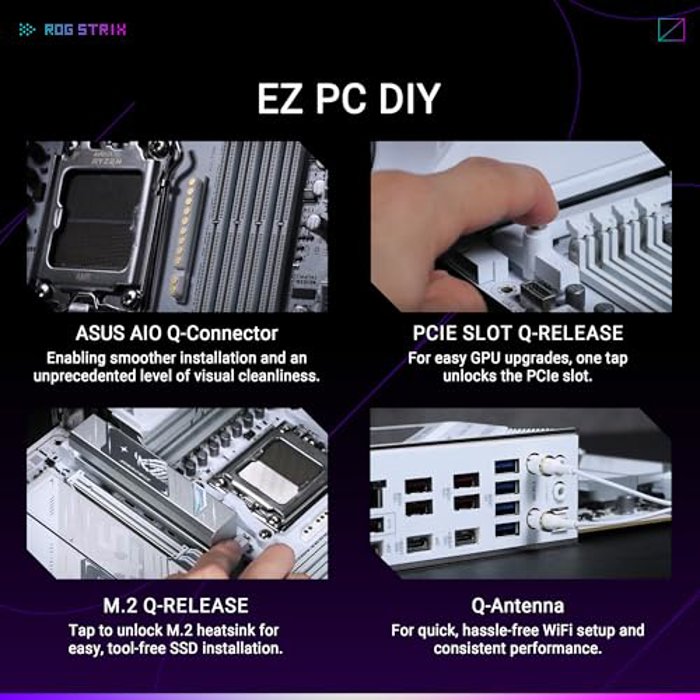

  • Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads. DIY Friendly Design: ASUS AIO Q-connector, PCIe Slot Q-Release, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
  • Latest M.2 Support: Two onboard PCIe? 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions. Unmatched Personalization: I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
  • Abundant Connectivity: Dual USB4? Type-C ports, One USB 10Gbps Type-C? rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, plus five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI port
  • High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5 Gb Ethernet. Renowned Software: BIOS 64 MB, ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

Specifications Overview

Model
  • ROG STRIX X870E-A GAMING WIFI7 NEO
  • 90MB1P30-M0VAY0
  • 90MB1P30-M0EAY0
Release Date March 2026

* First availability for purchase, it may not correspond to the actual market launch date.

Socket AM5
Form factor ATX
Chipset AMD X870
Supported Memory DDR5
4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7600Mhz 7800Mhz 8000Mhz 8200Mhz 8400Mhz 8600Mhz 9000Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support No
Audio Channels ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Max LAN Speed 5Gbps
SLI Support No
CrossFire Support No
RAID Support Yes
Back Connect No
Back I/O Ports
  • 2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x HDMI port
  • 1 x Wi-Fi module
  • 1 x Realtek 5Gb Ethernet port
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button
Wireless LAN Yes
Wi-Fi Generation 7
PCI-Express x16 Slots 2
PCI-Express x4 Slots 0
PCI-Express x1 Slots 0
SATA 6 Gbps Ports 4
SATA Express Ports 0
M.2 Ports 4
M.2 Devices support
  • 2242 / 2260 / 2280 - M Key
  • 2280 / 22110 - M Key
  • 2280 - M Key
  • 2280 - M Key
RAM Slots 4
Maximum Supported RAM 256 GB
Onboard USB 2.0 3
Onboard USB 3.2 Gen 1 2
Onboard USB 3.2 Gen 2 1
Onboard USB 3.2 Gen 2x2 1
