ASUS ROG Strix Z790-E Gaming WiFi II Motherboard

ASUS ROG Strix Z790-E Gaming WiFi II LGA 1700 DDR5 PCIe 5.0 2.5 Gb LAN 5X M.2 slots WiFi 7 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$459.99	-	Buy
Out of Stock	Out of Stock	$575.48 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Intel LGA 1700 Socket: Ready for Intel Socket LGA1700 for Intel Core 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 18(110A)+1(110A)+2 power solution with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and are connected with an L-shaped heatpipe
Next-Gen M.2 Support: PCIe 5.0 M.2 slot with Combo-Sink U-shaped Direct Contact heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
Abundant Connectivity: USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4

ASUS ROG Strix Z790-E Gaming WiFi II image 1

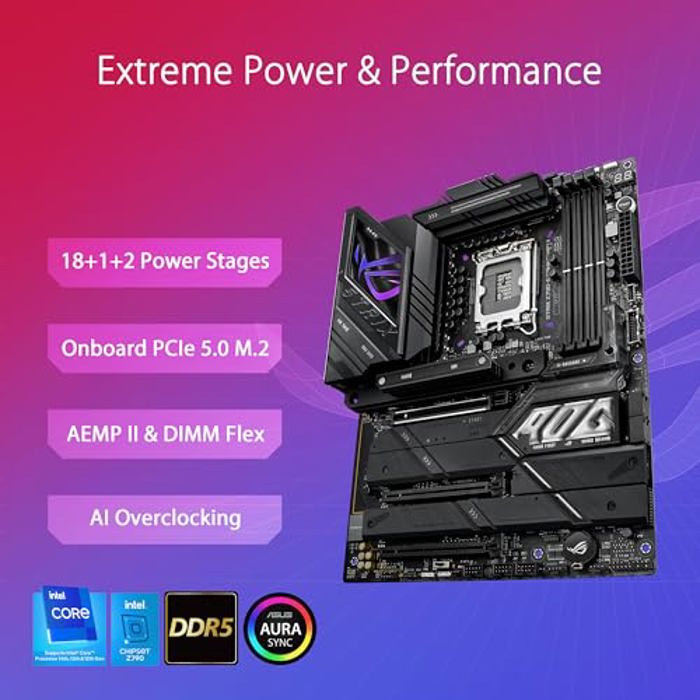

ASUS ROG Strix Z790-E Gaming WiFi II image 2

ASUS ROG Strix Z790-E Gaming WiFi II image 3

ASUS ROG Strix Z790-E Gaming WiFi II image 4

ASUS ROG Strix Z790-E Gaming WiFi II image 5

ASUS ROG Strix Z790-E Gaming WiFi II image 6

ASUS ROG Strix Z790-E Gaming WiFi II image 7

ASUS ROG Strix Z790-E Gaming WiFi II image 8

ASUS ROG Strix Z790-E Gaming WiFi II image 9

ASUS ROG Strix Z790-E Gaming WiFi II image 10

ASUS ROG Strix Z790-E Gaming WiFi II image 11

ASUS ROG Strix Z790-E Gaming WiFi II image 12

ASUS ROG Strix Z790-E Gaming WiFi II image 13

ASUS ROG Strix Z790-E Gaming WiFi II image 14

ASUS ROG Strix Z790-E Gaming WiFi II image 15

ASUS ROG Strix Z790-E Gaming WiFi II image 16

ASUS ROG Strix Z790-E Gaming WiFi II image 17

ASUS ROG Strix Z790-E Gaming WiFi II image 18

ASUS ROG Strix Z790-E Gaming WiFi II image 19

ASUS ROG Strix Z790-E Gaming WiFi II image 20

Specifications Overview

Model	ROG STRIX Z790-E GAMING WIFI II 90MB1FC0-M0EAY0 90MB1FC0-M0AAY0 90MB1FC0-MVAAY0
Release Date	October 2023 * First availability for purchase, it may not correspond to the actual market launch date.
Series	ROG
Socket	LGA1700
Form factor	ATX
Chipset	Intel Z790
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 8000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Max LAN Speed	1 x Intel® 2.5Gb EthernetASUS LANGuard
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	5
M.2 Devices support	2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key 2280 - M Key 2280 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	3
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
