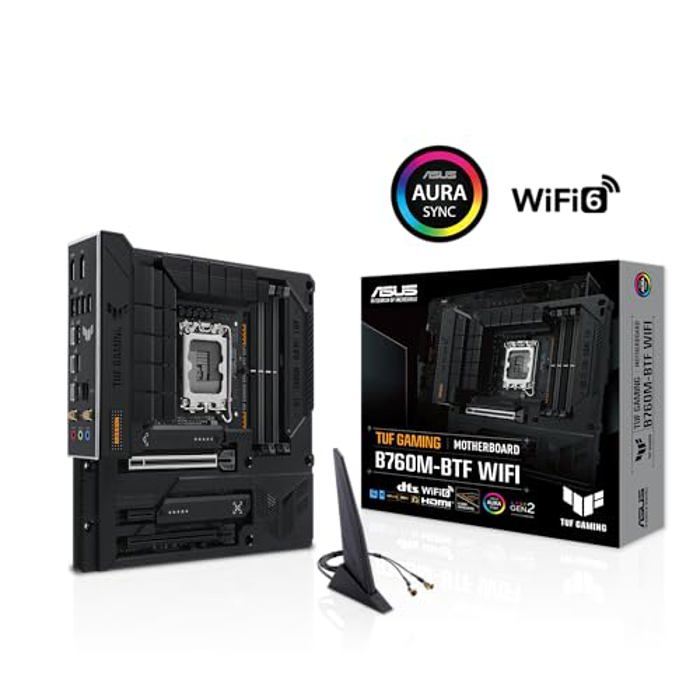

Name: ASUS TUF Gaming B760M-BTF WiFi
Brand: ASUS
SKU: TUF GAMING B760M-BTF WIFI

ASUS TUF Gaming B760M-BTF WiFi Intel B760 LGA1700 DDR, PCIe 5.0 3X PCIe 4.0 M.2 Slots 12+1 DrMOS Wi-Fi 6 2.5Gb LAN DP HDMI USB 3.2 Gen 2x2 Type-C micro ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$219.99		Buy
Last updated 13 minutes ago.
In Stock	In Stock	$219.99 +Free shipping	+Free	Buy
In Stock	In Stock	$219.99	-	Buy
In Stock	In Stock	$219.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Intel LGA 1700 socket: Ready for 12th, 13th and next Gen Intel processors
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ utility
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, Rear USB 3.2 Gen 2x2 Type-C, Front USB 3.2 Gen 2 Type-C and Thunderbolt 4(USB4) header support
Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications Overview

Model	TUF GAMING B760M-BTF WIFI 90MB1G50-M0AAY0
Release Date	June 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1700
Form factor	Micro ATX
Chipset	Intel B760
Supported Memory	DDR5 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels
LAN Chipset	1 x Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	Yes

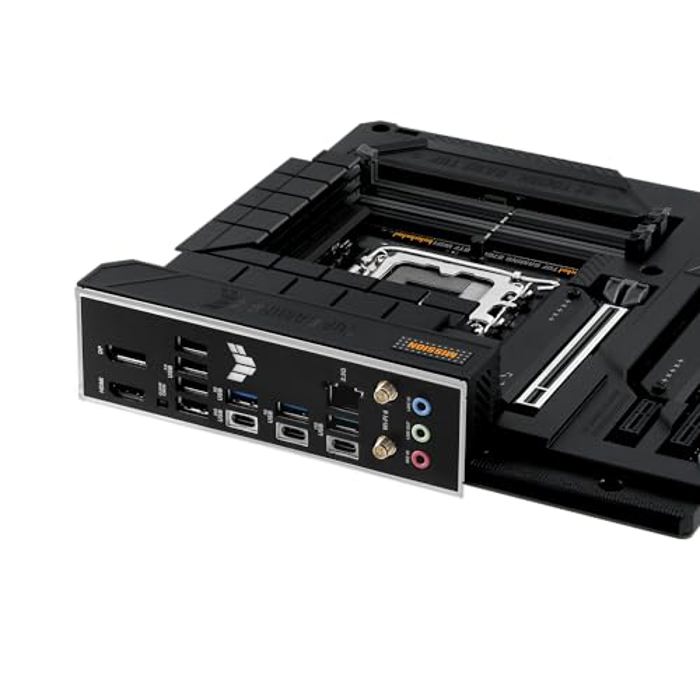

Back I/O Ports	1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button
Wireless LAN	Yes
Wi-Fi Generation	6
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
