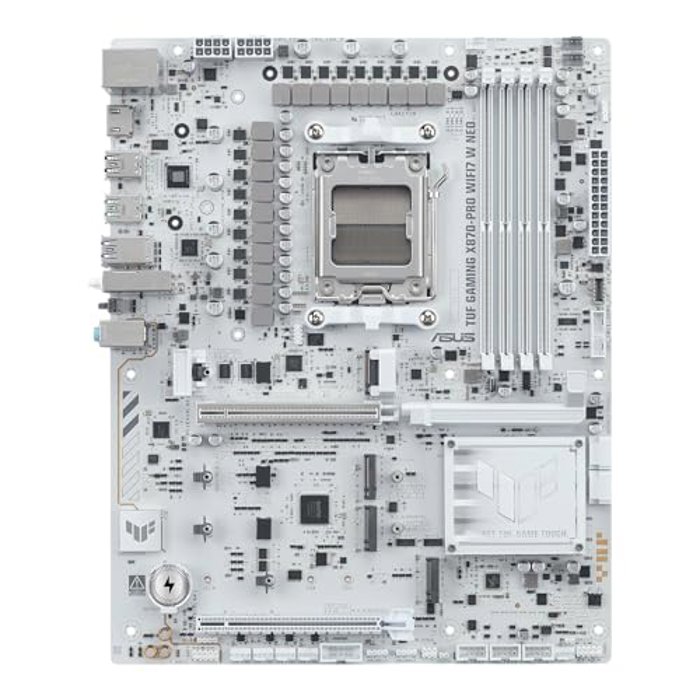

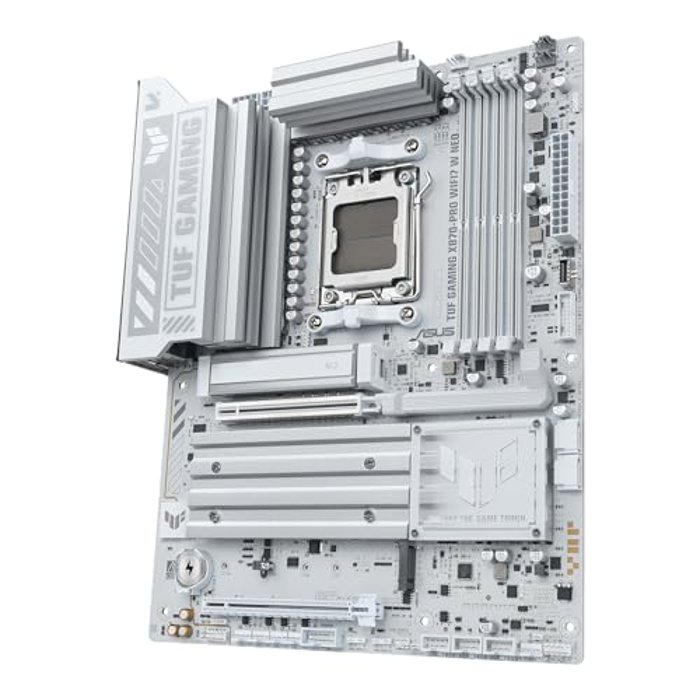

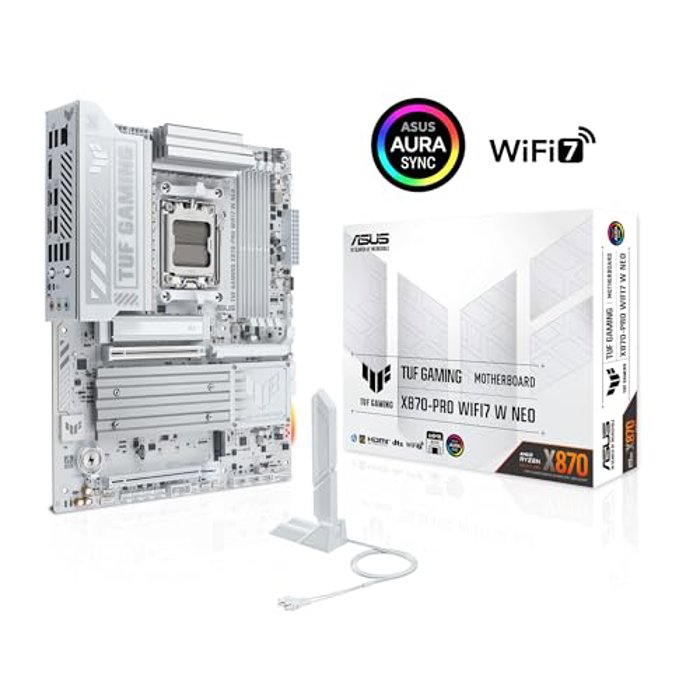

ASUS TUF Gaming X870-PRO WIFI7 W NEO

ASUS TUF Gaming X870-PRO WIFI7 W NEO 16+2+1 Power Stages DDR5 4x M.2 Slots PCIe 5.0 5Gbs Ethernet 64MB BIOS ATX

ASUS TUF Gaming X870-PRO WIFI7 W NEO 16+2+1 Power Stages DDR5 4x M.2 Slots PCIe 5.0 5Gbs Ethernet 64MB BIOS ATX

Seller Price Buy
In Stock
$349.79
Prime
Buy
Last updated 27 minutes ago.
In Stock
$349.99
+Free shipping
Buy
In Stock
$359.99
Buy
In Stock
$359.99
+Free shipping
Buy
In Stock
$359.99
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$

Price alerts are not available for Amazon.

  • Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors.
  • Exclusive AI Technologies: AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II and AI Networking II for intelligent control.
  • Robust Power Solution: 16(80A)+2(80A)+1(80A) SPS power stage, 8-layer PCB, 8+8 pin ProCool power connectors for stable power delivery.
  • Asynchronous Clock: Greater CPU potential and stability for overclocking.
  • PCIe Lane Optimization: The full bandwidth of the PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots while the USB4 (40Gbps) ports are not used.
  • Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots.
  • Abundant Connectivity: USB4 (40Gbps) ports, USB 20Gbps Type-C connector with up to 30W PD Fast-charge, three USB 2.0 headers.
  • Ultrafast Networking: WiFi 7 with pre-installed WiFi driver and 5Gb Ethernet.
  • DIY Friendly Design: M.2 Q-Release, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Clear CMOS button, BIOS FlashBack button. Renowned Software: 64MB BIOS and intuitive UEFI BIOS dashboard, ASUS MB Manager, ASUS DriverHub, TurboV Core, ASUS GlideX, Norton 360 for Gamers (60-day free trial) and Adobe Creative Cloud (one-month free trial).

Specifications Overview

Model
  • TUF GAMING X870-PRO WIFI7 W NEO
  • 90MB1NY0-M0VAY0
Release Date January 2026

* First availability for purchase, it may not correspond to the actual market launch date.

Series TUF
Socket AM5
Form factor ATX
Chipset AMD X870
Supported Memory DDR5
4800Mhz 9600Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support No
Audio Chipset Realtek ALC1220P
Audio Channels 7.1 Channels
LAN Chipset Realtek 5Gb
Max LAN Speed 5Gbps
SLI Support No
CrossFire Support No
RAID Support Yes
Back Connect No
Back I/O Ports
  • 2 x USB4 (40Gbps) Type-C
  • 3 x USB 10Gbps Type-A
  • 4 x USB 5Gbps Type-A
  • 1 x USB 2.0 Type-A
  • 1 x HDMI
  • 1 x Wi-Fi module
  • 1 x Realtek 5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button
Wireless LAN Yes
Wi-Fi Generation 7
PCI-Express x16 Slots 2
PCI-Express x4 Slots 0
PCI-Express x1 Slots 0
SATA 6 Gbps Ports 2
SATA Express Ports 0
M.2 Ports 4
M.2 Devices support
  • 2280 - M Key
  • 2280 - M Key
  • 2280 - M Key
  • 2242 / 2260 / 2280 / 22110 - M Key
RAM Slots 4
Maximum Supported RAM 256 GB
Onboard USB 2.0 3
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 0
Onboard USB 3.2 Gen 2x2 1
