Name: ASUS TUF Gaming Z790-BTF WiFi
Brand: ASUS
SKU: TUF GAMING Z790-BTF WIFI

ASUS TUF Gaming Z790-BTF WiFi 7 Intel Z790 PCIe 5.0 4x M.2 Slots 16+1+1 Power Stages DDR5 2.5Gb Ethernet USB Type-C Front USB Type-C Thunderbolt 4 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$299.99		Buy
(Used from $237.47) Last updated 19 minutes ago.
In Stock	In Stock	$299.99	-	Buy
Out of Stock	Out of Stock	$299.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Intel LGA 1700 socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver

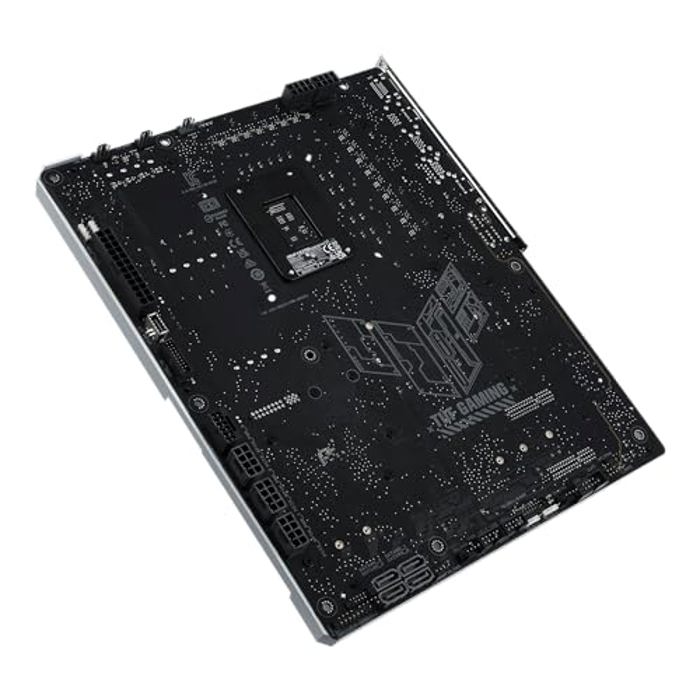

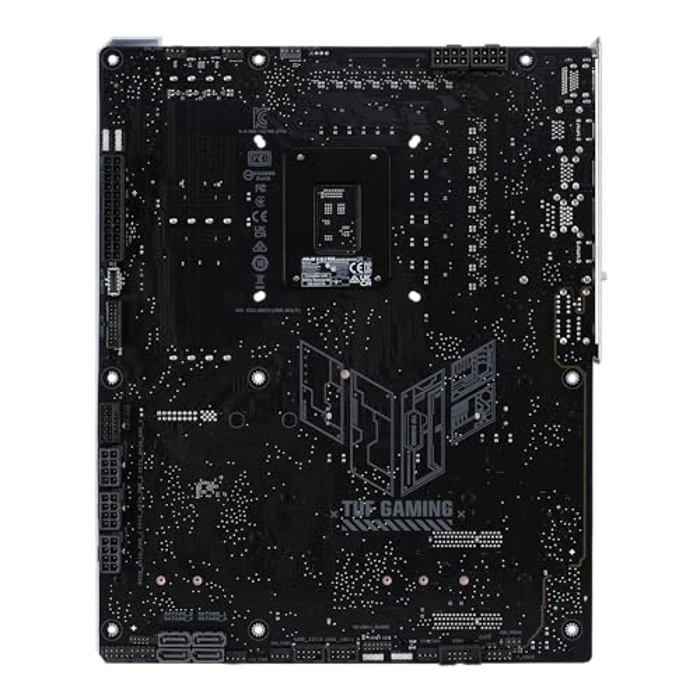

Hidden-Connector Design: Delivers an unprecedented lever of cable management to PC DIY enthusiasts
Graphics Card High Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
Exclusive AI & memory technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
Next-gen connectivity: PCIe 5.0, USB 20Gbps, front USB 10Gbps, and Thunderbolt 4 header
Made for online Gaming: WiFi 7 with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged M.2 and VRM heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate

Specifications Overview

Model	TUF GAMING Z790-BTF WIFI 90MB1GU0-M0AAY0
Release Date	May 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1700
Form factor	ATX
Chipset	Intel Z790
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels
LAN Chipset	1 x Intel 2.5Gb EthernetTUF LANGuard
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	Yes
Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	2
PCI-Express x4 Slots	1
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 / 22110 - M Key 2280 - M Key 2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
