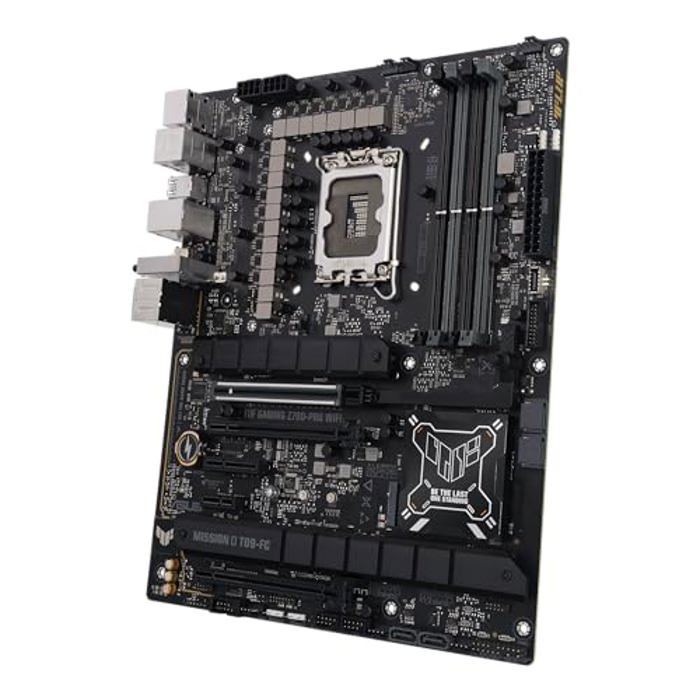

ASUS TUF Gaming Z790-PRO WiFi Motherboard

Name: ASUS TUF Gaming Z790-PRO WiFi
Brand: ASUS
SKU: TUF GAMING Z790-PRO WIFI
Rating: 2.0 (3 reviews)

ASUS TUF Gaming Z790-PRO WiFi 6E LGA 1700 DDR5 PCIe 5.0X 16 Front Panel USB 20Gbps Type-C Thunderbolt 4 ATX

★★☆☆☆

(3 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$351.42 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Specifications Overview

Model	TUF GAMING Z790-PRO WIFI 90MB1FJ0-M0AAY0 90MB1FJ0-M0EAY0
Release Date	October 2023 * First availability for purchase, it may not correspond to the actual market launch date.
Series	TUF
Socket	LGA1700
Form factor	ATX
Chipset	Intel Z790
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Max LAN Speed	1 x Intel® 2.5Gb EthernetTUF LANGuard
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	3
PCI-Express x4 Slots	1
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	192 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
