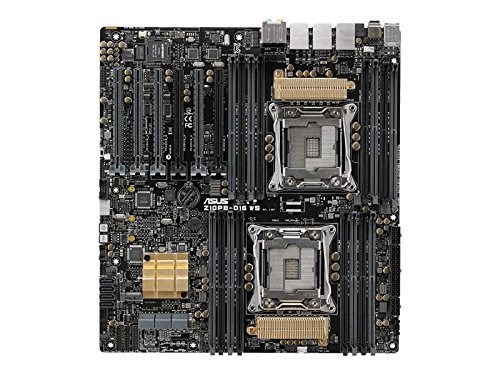

Asus Z10PE-D16 WS Motherboard

ASUS Z10PE-D16 WS LGA2011-v3 DDR4 Quad CrossFireX and 3-Way SLI M.2 EEB Server

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$1,398.35 + $29.99 Shipping	+ $29.99	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Dual Intel Socket 2011-3/ Intel C612 PCH chipset
Streamlined-airflow design with 16 DIMM slots
Supreme Power Solution - Premium components deliver industry-leading power efficiency
Unique BIOS for Dual CPU O.C. -Boost CPU's overclocking performance up to 10%.Complete remote server management with IPMI 2.0-compliant ASMB8-iKVM module and ASWM Enterprise
Compatible processors:Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series

Specifications Overview

Model	Z10PE-D16 WS 90SB04L0-M0EAY0
Series
Socket	2 x LGA2011-3
Form factor	SSI EEB
Chipset	Intel C612
Supported Memory	DDR4 1600Mhz 1866Mhz 2133Mhz 2400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1150
Audio Channels	8 Channels
LAN Chipset	Intel I210-AT
Max LAN Speed	Dual 10/100/1000Mbps
SLI Support	Yes
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Wireless LAN	No
PCI-Express x16 Slots	6
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	10
SATA Express Ports	0
M.2 Ports	1
M.2 Devices support	2260 / 2280 / 22110 - M Key
RAM Slots	16
Maximum Supported RAM	1024 GB
Onboard USB 2.0	1
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
