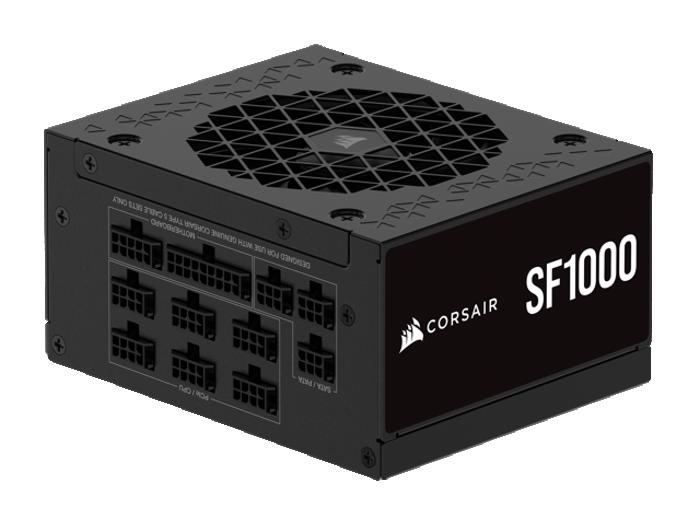

Corsair SF1000 (2024) Power Supply

Corsair SF1000 (2024) 1000 Watt Fully Modular 80 PLUS Platinum CP-9020257-NA

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$199.99 ~~$269.99~~ +Free shipping	+Free	Buy
$70.00 off w/ promo code: EPF4755, ends 6/3
In Stock	In Stock	$239.99 +Free shipping	+Free	Buy
In Stock	In Stock	$239.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

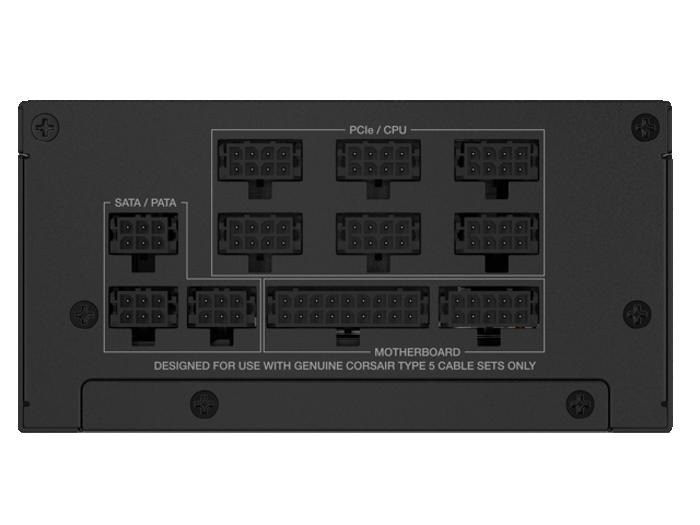

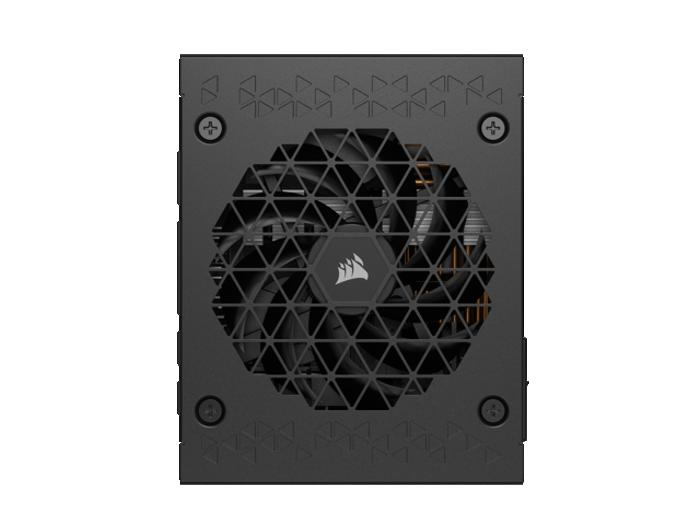

Corsair SF Series (2024) SF1000, 80 PLUS Platinum, Fully Modular SFX Power Supply, CP-9020257-NA Fans: 92mm PWM cooling fan Input Voltage: 100 - 240 V Input Frequency Range: 47 - 63 Hz Input Current: 12A-6A Output: +3.3V@20A, +5V@20A, +12V@83.3A, +5VSB@3A Dimensions: 4.92*3.94*2.50 inch Weight: 2.31 lbs Connectors: 1 x ATX Cable (24-PIN) (24): 300mm 2 x EPS/ATX12V Cable (8-PIN) (4+4): 400mm 4 x PCI-E Cable (8-PIN) (6+2): 400mm 1 x PCI-E Cable (12+4)PIN: 400mm 1 x SATA CABLE (4 Straight SATA): 100mm, 115mm, 115mm, 115mm 1 x SATA CABLE (4 Right SATA): 100mm, 115mm, 115mm, 115mm 1 x PATA-PATA-PATA: 100mm, 115mm, 115mm

Model	CP-9020257 CP-9020257-NA CP-9020257-AU CP-9020257-EU CP-9020257-UK
Release Date	June 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Wattage	1000 W
Type	SFX
Modular	Full
Efficiency	80+ Platinum
PCI-Express 16 Pin 12VHPWR Connectors	1
PCI-Express 12 Pin Connectors	0
PCI-Express 6+2 Pin Connectors	4
PCI-Express 6 Pin Connectors	0
EPS Connectors	2
SATA Connectors	8
Molex Connectors	3
Length	100 mm

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
