Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz RAM

Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz (PC3 15000) Desktop Memory CMZ64GX3M8A1866C9

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$238.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$424.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Density: 64 GB (8x8 GB)
Speed: 1866 MHz
Timing: 9-10-9-27
Limited Lifetime Warranty

Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz image 1

Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz image 2

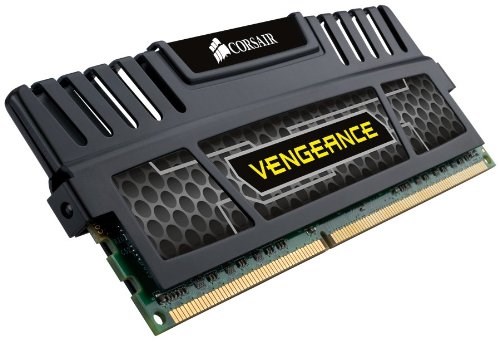

Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz image 3

Corsair Vengeance 64 GB (8 x 8 GB) DDR3 1866 MHz image 4

Specifications Overview

Model	CMZ64GX3M8A1866C9
Release Date	January 2013 * First availability for purchase, it may not correspond to the actual market launch date.
Type	240-pin DDR3 DIMM
Speed	DDR3-1866 MHz
Size	64GB (8 x 8GB)
CAS Latency	9
Timing	9-9-9-24
First Word Latency	9.65 ns
Voltage	1.5 V
Heat Spreader	Yes
ECC Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	1066	1333	1600	1866	2000	2133	2400	2666	2800	2933	3000	3100	3200
7	13.13	10.50	8.75	7.50	7.00	6.56	5.83	5.25	5.00	4.77	4.67	4.52	4.38
8	15.01	12.00	10.00	8.57	8.00	7.50	6.67	6.00	5.71	5.46	5.33	5.16	5.00
9	16.89	13.50	11.25	9.65	9.00	8.44	7.50	6.75	6.43	6.14	6.00	5.81	5.63
10	18.76	15.00	12.50	10.72	10.00	9.38	8.33	7.50	7.14	6.82	6.67	6.45	6.25
11	20.64	16.50	13.75	11.79	11.00	10.31	9.17	8.25	7.86	7.50	7.33	7.10	6.88
12	22.51	18.00	15.00	12.86	12.00	11.25	10.00	9.00	8.57	8.18	8.00	7.74	7.50
13	24.39	19.50	16.25	13.93	13.00	12.19	10.83	9.75	9.29	8.86	8.67	8.39	8.13
14	26.27	21.01	17.50	15.01	14.00	13.13	11.67	10.50	10.00	9.55	9.33	9.03	8.75
15	28.14	22.51	18.75	16.08	15.00	14.06	12.50	11.25	10.71	10.23	10.00	9.68	9.38
16	30.02	24.01	20.00	17.15	16.00	15.00	13.33	12.00	11.43	10.91	10.67	10.32	10.00
17	31.89	25.51	21.25	18.22	17.00	15.94	14.17	12.75	12.14	11.59	11.33	10.97	10.63
18	33.77	27.01	22.50	19.29	18.00	16.88	15.00	13.50	12.86	12.27	12.00	11.61	11.25
19	35.65	28.51	23.75	20.36	19.00	17.82	15.83	14.25	13.57	12.96	12.67	12.26	11.88

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
