Corsair Vengeance LPX 16GB (2x8GB) DDR4 3466MHz RAM

Corsair Vengeance LPX 16GB (2x8GB) DDR4 3466MHz (PC4 27700) C16 Memory Kit Black CMK16GX4M2B3466C16

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$224.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Designed for high-performance overclocking: Each Vengeance LPX module is built with a pure aluminum heat spreader for faster heat dissipation and cooler operation; and the eight-layer PCB helps manage heat and provides superior overclocking headroom. Each
Designed for great looks: Available in multiple colors to match your motherboard, your components, or just your style
Performance and Compatibility: Vengeance LPX is optimized and compatibility tested for the latest Intel X99 and 100 Series motherboards and offers higher frequencies, greater bandwidth, and lower power consumption. XMP 2.0 support for trouble-free automat
Low-profile heat spreader design: The Vengeance LPX module height is carefully designed to fit smaller spaces.

Corsair Vengeance LPX 16GB (2x8GB) DDR4 3466MHz image 1

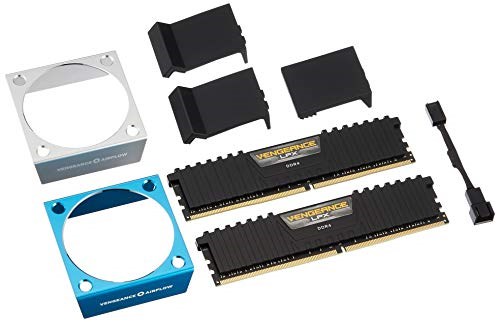

Corsair Vengeance LPX 16GB (2x8GB) DDR4 3466MHz image 2

Corsair Vengeance LPX 16GB (2x8GB) DDR4 3466MHz image 3

Specifications Overview

Model	CMK16GX4M2B3466C16
Type	288-pin DDR4 DIMM
Speed	DDR4-3466 MHz
Size	16GB (2 x 8GB)
CAS Latency	16
Timing	16-18-18-36
First Word Latency	9.23 ns
Voltage	1.35 V
Heat Spreader	Yes
ECC Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	2800	2933	3000	3200	3300	3333	3400	3466	3600	3666	3733	3800	3866	4000
14	10.00	9.55	9.33	8.75	8.48	8.40	8.24	8.08	7.78	7.64	7.50	7.37	7.24	7.00
15	10.71	10.23	10.00	9.38	9.09	9.00	8.82	8.66	8.33	8.18	8.04	7.89	7.76	7.50
16	11.43	10.91	10.67	10.00	9.70	9.60	9.41	9.23	8.89	8.73	8.57	8.42	8.28	8.00
17	12.14	11.59	11.33	10.63	10.30	10.20	10.00	9.81	9.44	9.27	9.11	8.95	8.79	8.50
18	12.86	12.27	12.00	11.25	10.91	10.80	10.59	10.39	10.00	9.82	9.64	9.47	9.31	9.00
19	13.57	12.96	12.67	11.88	11.52	11.40	11.18	10.96	10.56	10.37	10.18	10.00	9.83	9.50
20	14.29	13.64	13.33	12.50	12.12	12.00	11.76	11.54	11.11	10.91	10.72	10.53	10.35	10.00
21	15.00	14.32	14.00	13.13	12.73	12.60	12.35	12.12	11.67	11.46	11.25	11.05	10.86	10.50
22	15.71	15.00	14.67	13.75	13.33	13.20	12.94	12.69	12.22	12.00	11.79	11.58	11.38	11.00
23	16.43	15.68	15.33	14.38	13.94	13.80	13.53	13.27	12.78	12.55	12.32	12.11	11.90	11.50
24	17.14	16.37	16.00	15.00	14.55	14.40	14.12	13.85	13.33	13.09	12.86	12.63	12.42	12.00
25	17.86	17.05	16.67	15.63	15.15	15.00	14.71	14.43	13.89	13.64	13.39	13.16	12.93	12.50

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
