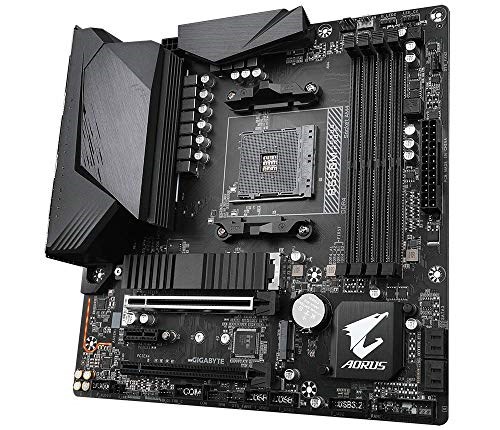

Gigabyte B550M AORUS PRO-P

Gigabyte B550M AORUS PRO-P M.2 Thermal Guard USB 3.2 Gen 2 Micro ATX

Gigabyte B550M AORUS PRO-P M.2 Thermal Guard USB 3.2 Gen 2 Micro ATX

★★★★☆
(3 reviews)
Seller Price Buy
Out of Stock
$149.94
+Free shipping
Buy
Out of Stock
$149.99
+Free shipping
Buy
Out of Stock
$149.99
+ $1.99 Shipping
Buy
Out of Stock
$234.90
+Free shipping
Buy
-
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$

Price alerts are not available for Amazon.

  • Supports AMD 3Rd Gen Ryzen And 3Rd Gen Ryzen With Radeon Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 Dimms
  • 10+2 Phases Digital Twin Power Design With 50A Drmos
  • Advanced Thermal Design With Enlarged VRM Heatsinks
  • Ultra Durable Pcie 4.0 Ready X16 Slot
  • Dual Ultra-Fast Nvme Pcie 4.0/3.0 X4 M.2 With One Thermal Guard
  • AMP-UP Audio With ALC1200 And Premium Capacitor
  • Blazing Fast 2.5Gbe LAN With Bandwidth Management
  • Displayport & HDMI For Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Specifications Overview

Model B550M AORUS PRO-P
Release Date October 2020

* First availability for purchase, it may not correspond to the actual market launch date.

Socket AM4
Form factor Micro ATX
Chipset AMD B550
Supported Memory DDR4
2133Mhz 2400Mhz 2666Mhz 2933Mhz 3200Mhz 3333Mhz 3600Mhz 4000Mhz 4400Mhz 4600Mhz 4733Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
* ECC memory support also depends on the CPU memory controller
Audio Chipset Realtek ALC1200
Audio Channels 2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 10/100/1000/2500Mbps
SLI Support
CrossFire Support
RAID Support
Back I/O Ports
  • 4 x USB 2.0/1.1 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x USB Type-C port with USB 3.2 Gen 2 support
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
Wireless LAN
PCI-Express x16 Slots 2
PCI-Express x4 Slots 0
PCI-Express x1 Slots 1
SATA 6 Gbps Ports 4
SATA Express Ports 0
M.2 Ports 2
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 - M Key
RAM Slots 4
Maximum Supported RAM 128 GB
Onboard USB 2.0 2
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 0
Onboard USB 3.2 Gen 2x2 0
