GIGABYTE B650E Eagle WIFI6E Motherboard

GIGABYTE B650E Eagle WIFI6E 8+2+2 Phase VRM 8200MHz DDR5 (O.C) 1x PCIe 5.0 + 2x PCIe 4.0 M.2 2.5GbE LAN WiFi 6E USB 3.2 Gen 2 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$159.99 + $2.99 Shipping	+ $2.99	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 series processors
Unmatched performance: 8+2+2 phase digital VRM solution
Dual Channel DDR5: 4SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed memory: 1PCIe 5.0 + 2 x PCIe 4.0 M.2 ports
Advanced Heat Design & M.2 Heat Protection: To ensure VRM current stability & 25110 M.2 SSD performance
Fast networks: Wi-Fi 6E 802.11ax & GbE LAN
WiFi EZ plug: quick and easy design for installing the Wi-Fi antenna
Advanced connectivity: DP, HDMI, Rear USB 10Gb/s

Specifications Overview

Model	B650E EAGLE WIFI6E B650E EAGLE WF6E
Release Date	November 2025 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	ATX
Chipset	AMD B650E
Supported Memory	DDR5 4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6666Mhz 6800Mhz 7000Mhz 7200Mhz 7600Mhz 7800Mhz 8000Mhz 8200Mhz 8400Mhz 8600Mhz 8800Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No

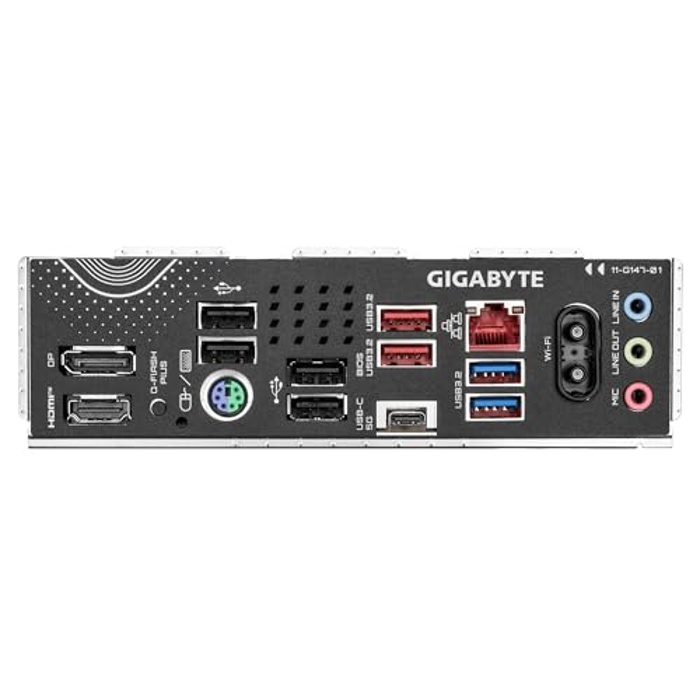

Back I/O Ports	1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (1T1R) 3 x audio jacks
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	4
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2280 / 25110 - M Key 2280 / 22110 - M Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
