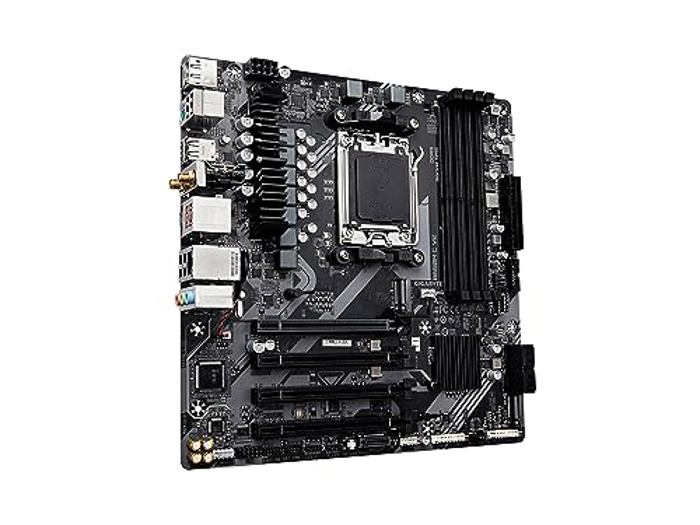

GIGABYTE B650M C V2

GIGABYTE B650M C V2 AM5 AMD B650 DDR5 PCIe 4.0 M.2 USB 3.2 Gen1 Type-C 1GbE LAN Micro-ATX

GIGABYTE B650M C V2 AM5 AMD B650 DDR5 PCIe 4.0 M.2 USB 3.2 Gen1 Type-C 1GbE LAN Micro-ATX

Seller Price Buy
Out of Stock
$111.19
+ $2.99 Shipping
Buy
In Stock
$159.99
+Free shipping
Buy
In Stock
$159.99
Prime
Buy
(Used from $137.30) Last updated 29 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$

Price alerts are not available for Amazon.

  • AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
  • 5-Year Warranty
  • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Unparalleled Performance:5+2+2 Phases Digital VRM Solution
  • SuperSpeed Storage:3*PCIe 4.0 M.2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 2 Type-A
  • Fast Networking: 1GbE Realtek LAN, WIFI 802.11a, b, g, n, ac
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specifications Overview

Model B650M C V2
Release Date July 2023

* First availability for purchase, it may not correspond to the actual market launch date.

Socket AM5
Form factor Micro ATX
Chipset AMD B650
Supported Memory DDR5
4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Chipset Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels 7.1 Channels
LAN Chipset Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Max LAN Speed 1Gbps
SLI Support
CrossFire Support
RAID Support
Back I/O Ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C port with USB 3.2 Gen 1 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 6 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
Wireless LAN
Wi-Fi Generation 5
PCI-Express x16 Slots 4
PCI-Express x4 Slots 0
PCI-Express x1 Slots 0
SATA 6 Gbps Ports 4
SATA Express Ports 0
M.2 Ports 4
M.2 Devices support
  • 2280 / 25110 - M Key
  • 2280 - M Key
  • 2260 - M Key
  • 2230 - E Key
RAM Slots 4
Maximum Supported RAM 192 GB
Onboard USB 2.0 3
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 1
Onboard USB 3.2 Gen 2x2 0
