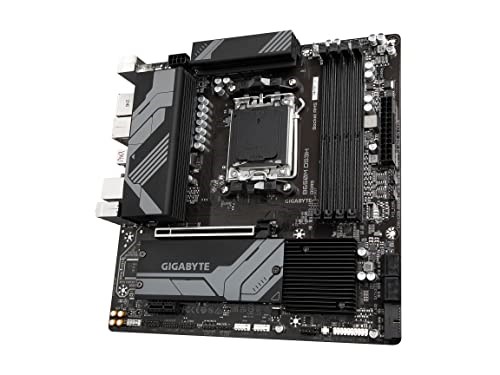

GIGABYTE B650M DS3H Motherboard

Name: GIGABYTE B650M DS3H
Brand: Gigabyte
SKU: B650M DS3H
Rating: 4.0 (6 reviews)

GIGABYTE B650M DS3H AM5 DDR5 PCIe 4.0 M.2 USB 3.2 Gen2X2 Type-C 2.5GbE LAN Micro ATX

★★★★☆

(6 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$189.35 +Free shipping	+Free	Buy
In Stock	In Stock	$206.09	-	Buy
Last updated 21 minutes ago.

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

5-Year Warranty
AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Sturdy Power Design: Direct 6+2+1 Phases Digital VRM Solution
Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
Next Gen Connectivity: PCIe 5.0, NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: 2.5GbE LAN
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specifications Overview

Model	B650M DS3H B650M DS3H (rev. 1.0)
Release Date	October 2022 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	Micro ATX
Chipset	AMD B650
Supported Memory	DDR5 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek® Audio CODEC
Audio Channels	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Max LAN Speed	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
Wireless LAN	No
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2280 / 25110 - M Key 2280 / 25110 - M Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
