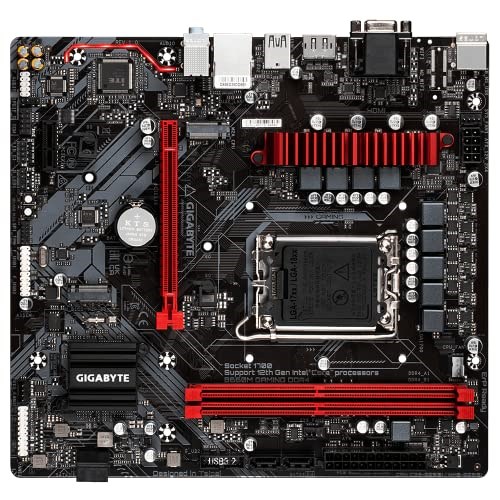

Gigabyte B660M GAMING DDR4 Motherboard

Gigabyte B660M GAMING DDR4 2 x PCIe 4.0 M.2 2.5GbE LAN Rear USB 3.2 Gen 1 Type-C RGB FUSION 2.0 Q-Flash Plus Micro ATX

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$173.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

Model	B660M GAMING DDR4
Socket	LGA1700
Form factor	Micro ATX
Chipset	Intel B660
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2933Mhz 3000Mhz 3200Mhz 3300Mhz 3333Mhz 3400Mhz 3466Mhz 3600Mhz 3666Mhz 3733Mhz 3800Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz 4300Mhz 4400Mhz 4500Mhz 4600Mhz 4700Mhz 4800Mhz 4933Mhz 5000Mhz 5133Mhz 5333Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Wireless LAN	No
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2260 / 2280 - M Key 2260 / 2280 - M Key
RAM Slots	2
Maximum Supported RAM	64 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
