Gigabyte GA-Z170M-D3H Motherboard

Name: Gigabyte GA-Z170M-D3H
Brand: Gigabyte
SKU: GA-Z170M-D3H
Rating: 3.0 (18 reviews)

GIGABYTE GA-Z170M-D3H LGA1151 Intel Z170 Micro ATX DDR4

★★★☆☆

(18 reviews)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$76.90 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (1)

GA-Z170X-UD3
$203.70

LGA1151, Supports 7th/ 6th Generation Intel Core Processors
Memory: 4x DDR4 DIMM Slots, Dual Channel
Slots: 1x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x4, 2 x PCI slots
Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC
Storage Interface: 3 x SATA Express, 6 x SATA 3, 1 x M.2
USB: 8 x USB 3.0 ports; 6 x USB 2.0 ports

Specifications Overview

Model	GA-Z170M-D3H
Socket	LGA1151
Form factor	Micro ATX
Chipset	Intel Z170
Supported Memory	DDR4 2133Mhz 2400Mhz 2800Mhz 3000Mhz 3200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC892
Audio Channels	2/4/5.1/7.1-channel
LAN Chipset	Intel GbE LAN chip (10/100/1000 Mbit)
Max LAN Speed	10/100/1000Mbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Wireless LAN	No
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	6
SATA Express Ports	3
M.2 Ports	1
M.2 Devices support	2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	64 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

Description

CPU
1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® Z170 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 1024 MB
Audio
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
3. 2 x PCI slots
Storage Interface
Chipset:
1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
Multi-Graphics Technology
1. Support for 2-Way AMD CrossFire™ technology
USB
Chipset:
1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 2 x USB 3.0/2.0 headers
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x Thunderbolt™ add-in card connector
15. 1 x serial port header
16. 1 x parallel port header
17. 1 x Clear CMOS jumper

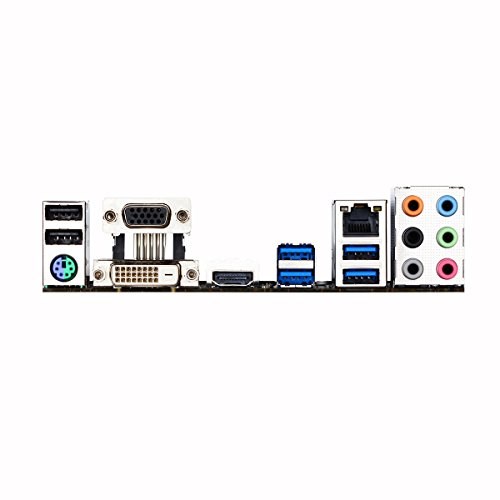

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Smart TimeLock
  Smart Keyboard
  Smart Backup
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install
Bundle Software
1. Norton® Internet Security (OEM version)
2. Intel® Smart Response Technology
3. cFosSpeed
Operating System
1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. Micro ATX Form Factor; 24.4cm x 22.5cm
Box Contents
1. GA-Z170M-D3H motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User's Manual
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
