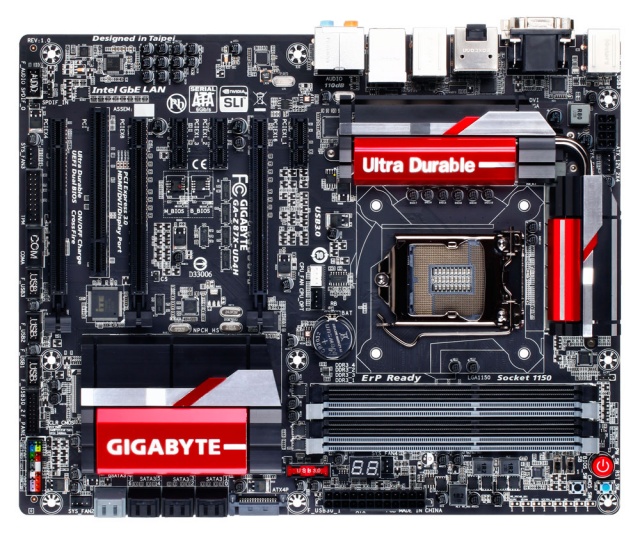

| CPU |
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
| Chipset |
- Intel® Z87 Express Chipset
|
| Memory |
- 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
- 1 x DisplayPort, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for DisplayPort 1.2 version.
- Maximum shared memory of 1 GB
|
| Audio |
- Realtek® ALC898 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF In/Out
|
| LAN |
- Intel® GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2/3 slots. The PCIEX1_2/3 slots will become unavailable when a PCIe x4 expansion card is installed.
* When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
- 3 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 1 x PCI slot
|
| Multi-Graphics Technology |
- Support for 2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology
(PCIEX16 and PCIEX8)
|
| Storage Interface |
Chipset:
- 6 x SATA 6Gb/s connectors (SATA3 0~5) supporting up to 6 SATA 6Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
Marvell® 88SE9172 chip:
- 2 x SATA 6Gb/s connectors (GSATA3 6/7) or 2 eSATA 6Gb/s connectors on the back panel, supporting up to 2 SATA 6Gb/s devices
* Use either the GSATA3 6, 7 connectors or the eSATA connectors at a time.
- Support for RAID 0 and RAID 1
|
| USB |
Chipset:
- Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
- Up to 6 USB 2.0/1.1 ports (available through the internal USB headers)
Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
- Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
* Please download & install Win8 USB patch for better compatibility. |
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 8 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 3.0/2.0 headers
- 3 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- Voltage measurement points
- 2 x BIOS switches
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x DisplayPort
- 1 x optical S/PDIF Out connector
- 6 x USB 3.0/2.0 ports
- 2 x eSATA 6Gb/s connectors
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE® I/O Controller Chip
|
| H/W Monitoring |
- System voltage detection
- CPU/Chipset/System temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- 2 x 128 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
|
| Unique Features |
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
ON/OFF Charge2
USB Blocker
|
| Bundle Software |
- Norton® Internet Security (OEM version)
- Intel® Rapid Start Technology
- Intel® Smart Connect Technology
- Intel® Smart Response Technology
- cFosSpeed
|
| Operating System |
- Support for Windows 8/7
|
| Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
