GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G Graphics Card

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G 3X WINDFORCE Fans 24GB 384-bit GDDR6X GV-N4090WF3V2-24GD

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$1,779.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$1,799.99 + $10.63 Shipping	+ $10.63	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (1)

GeForce RTX 4090 GAMING OC 24G
$1,699.99

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 2x AI performance
3rd Generation RT Cores: Up to 2x ray tracing performance
Powered by GeForce RTX 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE cooling system, Dual BIOS
Protection metal back plate, Anti-sag bracket

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 1

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 2

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 3

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 4

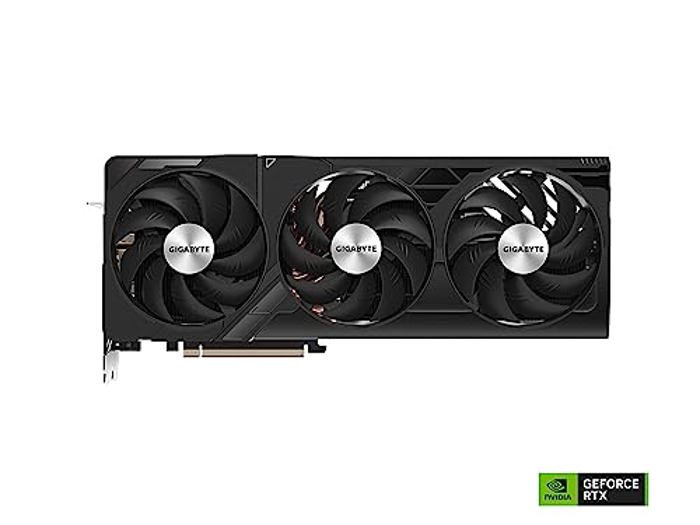

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 5

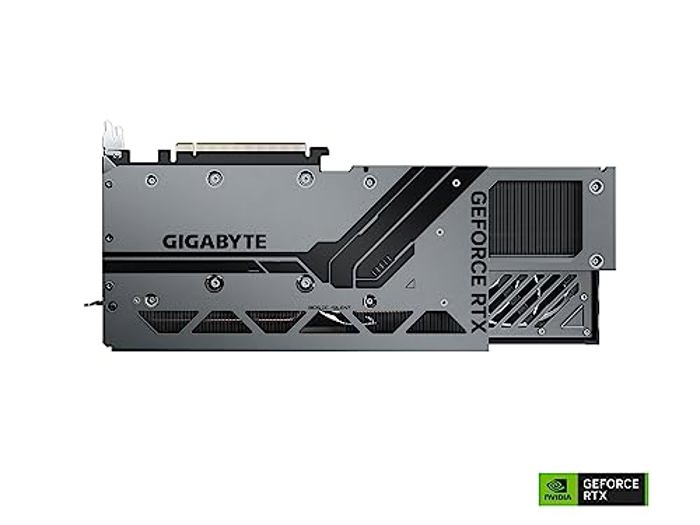

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 6

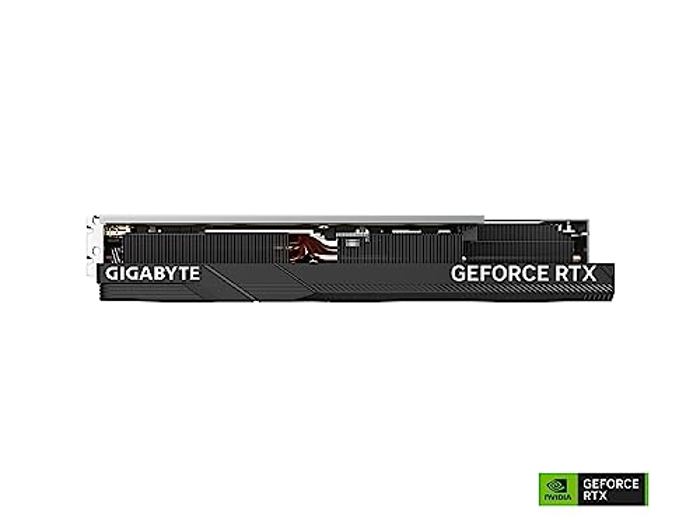

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 7

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 8

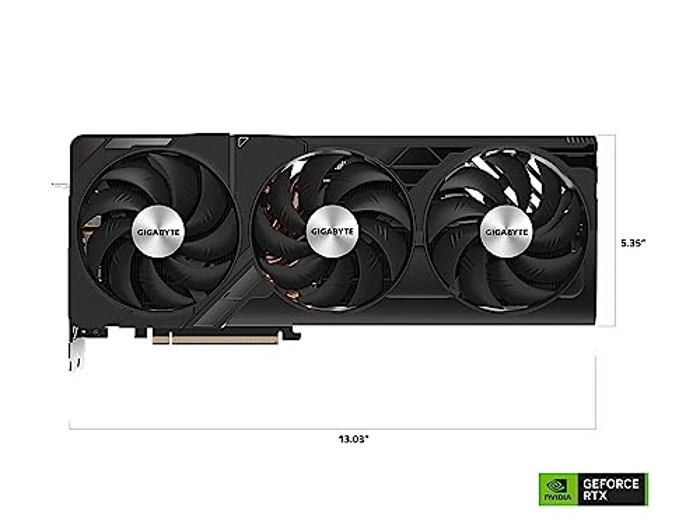

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 9

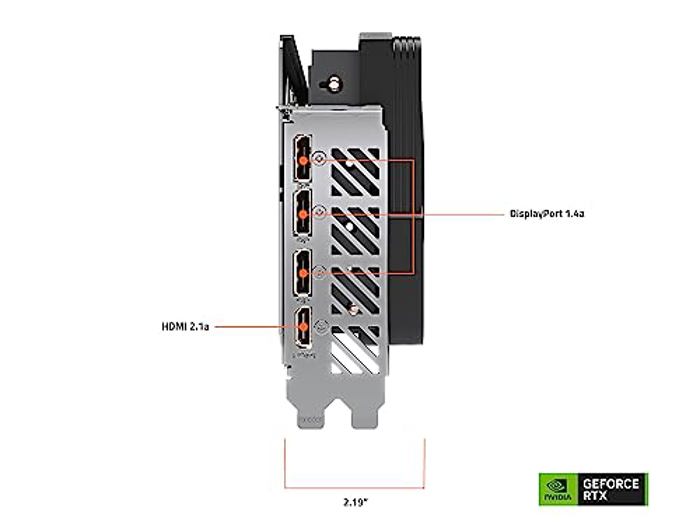

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G image 10

Specifications Overview

Model	GV-N4090WF3V2-24GD
Release Date	June 2023 * First availability for purchase, it may not correspond to the actual market launch date.
GPU Interface	PCIe x16
GPU Chipset	GeForce RTX 4090
GPU Memory Size	24 GB
GPU Memory Type	GDDR6X
GPU Memory Interface	384-bit
GPU Clock Rate	2235 MHz
GPU Boost Clock Rate	2520 MHz
TDP	450 W
Length	331 mm
Cooling Type	3 Fans
Power Connectors	1 PCIe 16-pin
SLI Support	No
CrossFire Support	No
DVI-D (Dual Link)	0
DVI-I (Dual Link)	0
DisplayPort	3
HDMI	1
G-SYNC Support	Yes
FreeSync Support	No
Expansion slots required	2

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G Performance comparison with similar Graphics Cards

(Higher is better)

GIGABYTE GeForce RTX 4090 WINDFORCE V2 24G Performance

GPU Gaming Performance (Rasterization)

GeForce RTX 5090 (1st)		117%
GeForce RTX 4090 (2nd)		100%
GeForce RTX 5080 (3rd)		89%
GeForce RTX 4080 SUPER (4th)		81%
GeForce RTX 4080 (5th)		78%
Radeon RX 7900 XTX (6th)		76%
GeForce RTX 5070 Ti (7th)		72%
Radeon RX 9070 XT (8th)		68%
GeForce RTX 4070 Ti SUPER (9th)		67%
Radeon RX 7900 XT (10th)		65%
GeForce RTX 4070 Ti (11th)		64%
GeForce RTX 3090 Ti (12th)		62%
Radeon RX 9070 (13th)		60%
Radeon RX 6950 XT (14th)		59%
GeForce RTX 5070 (15th)		58%
Radeon RX 6900 XT (16th)		58%
GeForce RTX 4070 SUPER (16th)		58%
Radeon RX 7900 GRE (16th)		58%
GeForce RTX 3090 (17th)		56%
GeForce RTX 3080 Ti (18th)		55%
