GIGABYTE X570S AORUS Elite Motherboard

Name: GIGABYTE X570S AORUS Elite
Brand: Gigabyte
SKU: X570S AORUS ELITE
Rating: 4.0 (6 reviews)

GIGABYTE X570S AORUS Elite PCIe 4.0 SATA 6Gb/s USB 3.1 ATX

★★★★☆

(6 reviews)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$169.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$227.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Options (9)

	X570S AORUS MASTER Bundle X570S $559.17
	X670E AORUS XTREME Bundle X670 $549.99
	X570 I AORUS PRO WIFI Bundle X570 $209.99
	X570 AORUS ELITE WIFI Bundle X570 $263.03
	X570S AORUS ELITE AX Bundle X570S $194.99
	X570S AERO G Bundle X570S $199.99
	X570SI AORUS PRO AX Bundle X570S $249.99
	X570S AORUS PRO AX Bundle X570S $299.99
	X570 AORUS ELITE Bundle X570 $239.57

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Fast 2.5GbE LAN with Bandwidth Management
SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds
AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

Specifications Overview

Model	X570S AORUS ELITE
Release Date	February 2022 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM4
Form factor	ATX
Chipset	AMD X570
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2933Mhz 3200Mhz 3400Mhz 3466Mhz 3600Mhz 3733Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz 4400Mhz 4600Mhz 4800Mhz 5100Mhz 5200Mhz 5400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220-VB
Audio Channels	7.1 Channels
LAN Chipset	Realtek 2.5GbE LAN
Max LAN Speed	10/100/1000/2500Mbps
SLI Support	No
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No

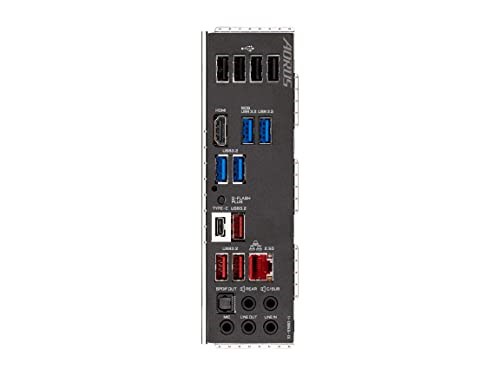

Back I/O Ports	4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x USB Type-C port with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Wireless LAN	No
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	6
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2260 / 2280 / 22110 - M Key 2260 / 2280 / 22110 - M Key 2260 / 2280 / 22110 - M Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
