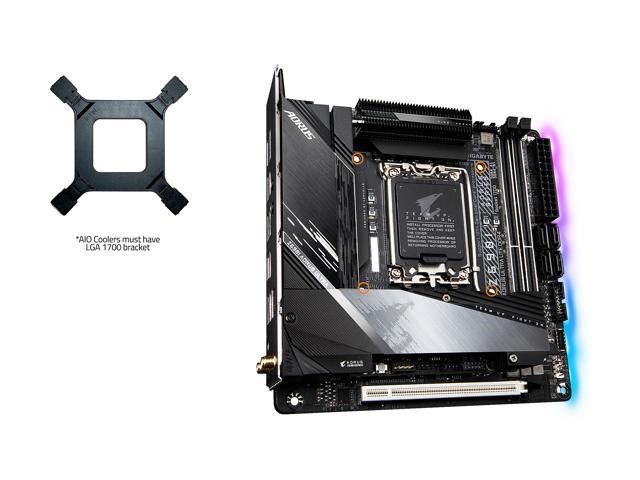

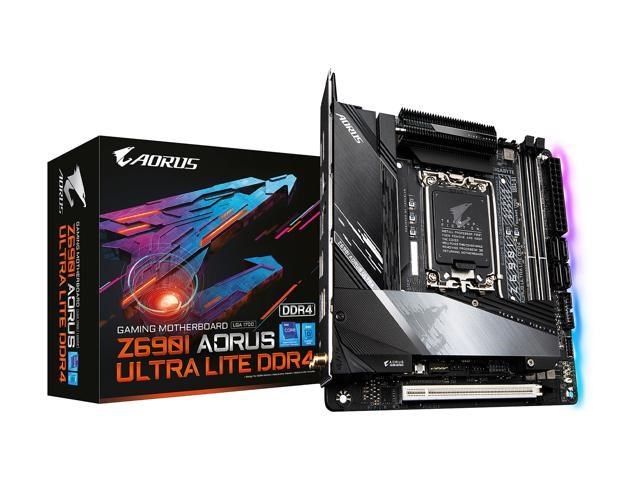

Gigabyte Z690I AORUS ULTRA LITE DDR4 Motherboard

Name: Gigabyte Z690I AORUS ULTRA LITE DDR4
Brand: Gigabyte
SKU: Z690I AORUS ULTRA LITE DDR4
Rating: 4.0 (14 reviews)

Gigabyte Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 SATA 6Gb/s Mini ITX

★★★★☆

(14 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$303.66 + $39.99 Shipping	+ $39.99	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

GIGABYTE Z690I AORUS ULTRA LITE DDR4 (rev. 1.0) LGA 1700 Intel Z690 SATA 6Gb/s Mini ITX Intel Motherboard Memory Standard: DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Number of Memory Slots: 2x288pin (DDR4) Audio Chipset: Realtek ALC4080 PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Core / Pentium / Celeron (12th Gen, LGA1700) Maximum Memory Supported: 64GB

Model	Z690I AORUS ULTRA LITE DDR4 Z690I AORUS ULTRA LITE DDR4 (rev. 1.0)
Socket	LGA1700
Form factor	Mini ITX
Chipset	Intel Z690
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2800Mhz 2933Mhz 3000Mhz 3200Mhz 3300Mhz 3333Mhz 3400Mhz 3466Mhz 3600Mhz 3666Mhz 3733Mhz 3800Mhz 3866Mhz 4000Mhz 4133Mhz 4266Mhz 4300Mhz 4400Mhz 4500Mhz 4600Mhz 4700Mhz 4800Mhz 4933Mhz 5000Mhz 5133Mhz 5333Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC4080
Audio Channels	2 Channels
Max LAN Speed	10/100/1000/2500Mbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x audio jacks
Wireless LAN	Yes
Wi-Fi Generation	6
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	2
Maximum Supported RAM	64 GB
Onboard USB 2.0	0
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
