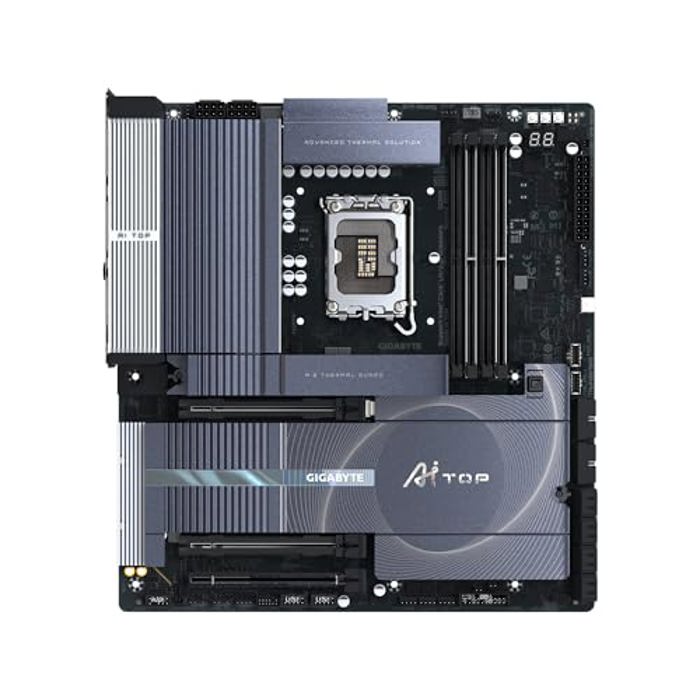

GIGABYTE Z890 AI TOP Motherboard

GIGABYTE Z890 AI TOP LGA1851 DDR5 4X M.2 PCIe 5.0 Thunderbolt 5 WIFI7 10GbE LAN,EZ-Latch E-ATX

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$479.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$594.22 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Supports Intel Core Ultra Processors (Series 2)
DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
Power Design: 16+1+2, 80A Smart Power Stage
Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard
Connectivity: PCIe 5.0, 4x M.2 Slots, Dual Thunderbolt 5, Front USB-C
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone
Networking: WIFI7, 10GbE LAN

Specifications Overview

Model	Z890 AI TOP
Release Date	October 2024 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1851
Form factor	EATX
Chipset	Intel Z890
Supported Memory	DDR5 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 7900Mhz 7950Mhz 8000Mhz 8200Mhz 8266Mhz 8400Mhz 8600Mhz 8800Mhz 8933Mhz 9066Mhz 9200Mhz 9333Mhz 9466Mhz 9500Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	8
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 / 25110 - M Key 2280 / 25110 - M Key 2280 / 22110 - M Key 2280 / 22110 - M Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	2

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
