Kingston 32GB 260-Pin DDR4 SO-DIMM 2933 RAM

Kingston 32GB 260-Pin DDR4 SO-DIMM 2933 (PC4 23400) KSM29SED8/32ME

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$205.99 + $8.64 Shipping	+ $8.64	Buy
Out of Stock	Out of Stock	$279.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

Kingston 32GB 260-Pin DDR4 SO-DIMM DDR4 2933 (PC4 23400) Laptop Memory Model KSM29SED8/32ME CAS Latency: 21 Timing: 21-21-21 ECC: Yes Features: Power Supply: VDD = 1.2V VDDQ = 1.2V VPP = 2.5V VDDSPD = 2.20V to 3.60V Functionality and operations comply with the DDR4 SDRAM datasheet 16 internal banks Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available Data transfer rates: PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) Supports ECC error correction and detection On-Die Termination (ODT) Temperature sensor with integrated SPD This product is in compliance with the RoHS directive. Per DRAM Addressability is supported Internal Vref DQ level generation is available Write CRC is supported at all speed grades CA parity (Command/A...

Kingston 32GB 260-Pin DDR4 SO-DIMM 2933 image 1

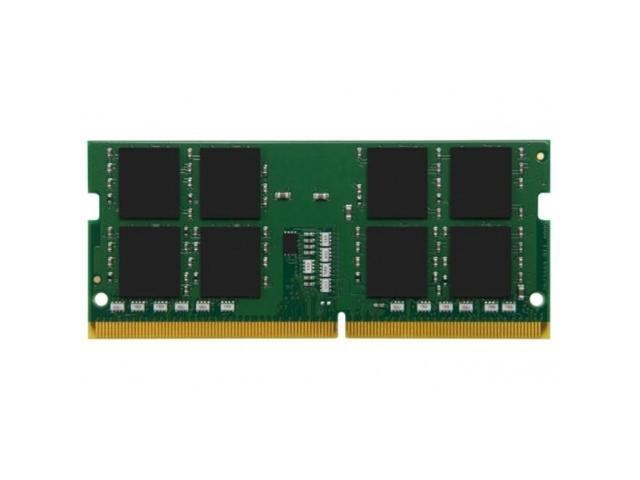

Kingston 32GB 260-Pin DDR4 SO-DIMM 2933 image 2

Specifications Overview

Model	KSM29SED8/32ME
Type	260-pin DDR4 SODIMM
Speed	DDR4-2933 MHz
Size	32GB (1 x 32GB)
CAS Latency	21
Timing	21-21-21
First Word Latency	14.31 ns
Voltage	1.2 V
Heat Spreader	Yes
ECC Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	2133	2400	2666	2800	2933	3000	3200	3300	3333	3400	3466	3600	3666	3733
13	12.19	10.83	9.75	9.29	8.86	8.67	8.13	7.88	7.80	7.65	7.50	7.22	7.09	6.96
14	13.13	11.67	10.50	10.00	9.55	9.33	8.75	8.48	8.40	8.24	8.08	7.78	7.64	7.50
15	14.06	12.50	11.25	10.71	10.23	10.00	9.38	9.09	9.00	8.82	8.66	8.33	8.18	8.04
16	15.00	13.33	12.00	11.43	10.91	10.67	10.00	9.70	9.60	9.41	9.23	8.89	8.73	8.57
17	15.94	14.17	12.75	12.14	11.59	11.33	10.63	10.30	10.20	10.00	9.81	9.44	9.27	9.11
18	16.88	15.00	13.50	12.86	12.27	12.00	11.25	10.91	10.80	10.59	10.39	10.00	9.82	9.64
19	17.82	15.83	14.25	13.57	12.96	12.67	11.88	11.52	11.40	11.18	10.96	10.56	10.37	10.18
20	18.75	16.67	15.00	14.29	13.64	13.33	12.50	12.12	12.00	11.76	11.54	11.11	10.91	10.72
21	19.69	17.50	15.75	15.00	14.32	14.00	13.13	12.73	12.60	12.35	12.12	11.67	11.46	11.25
22	20.63	18.33	16.50	15.71	15.00	14.67	13.75	13.33	13.20	12.94	12.69	12.22	12.00	11.79
23	21.57	19.17	17.25	16.43	15.68	15.33	14.38	13.94	13.80	13.53	13.27	12.78	12.55	12.32
24	22.50	20.00	18.00	17.14	16.37	16.00	15.00	14.55	14.40	14.12	13.85	13.33	13.09	12.86
25	23.44	20.83	18.75	17.86	17.05	16.67	15.63	15.15	15.00	14.71	14.43	13.89	13.64	13.39

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
