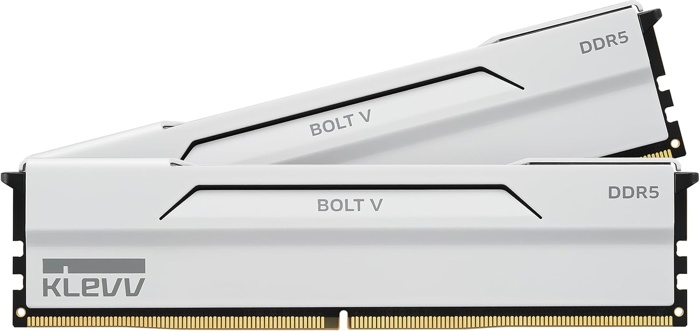

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 RAM

KLEVV BOLT V 32GB (2x16GB) DDR5 6000MT/S CL30 KD5AGUA80-60A300H

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$449.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

Massima RAM per la massima velocità - Con velocità fino a 6800 MT/s, il nuovo BOLT V è progettato per accelerare le prestazioni del sistema anche in multitasking pesante, giochi estremi o creazione grafica intensiva.
Design moderno e conciso: design minimalista unico con look a basso profilo.
Spazio ultra basso: altezza compatta di 34 mm per massimizzare la libertà nella creazione di edifici con installazione senza problemi
Dissipatore di calore in alluminio di qualità superiore - realizzato in alluminio di alta qualità per la massima efficienza nella conducibilità termica e nella dissipazione del calore con sensore termico integrato.
PMIC integrato per una migliore gestione dell'alimentazione - Dotato di PMIC integrato per una maggiore stabilità e efficienza dell'alimentazione.

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 image 1

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 image 2

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 image 3

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 image 4

KLEVV BOLT V 32GB (2x16GB) DDR5 6000 image 5

Specifications Overview

Model	KD5AGUA80-60A300H
Type	288-pin DDR5 DIMM
Speed	DDR5-6000 MHz
Size	32GB (2 x 16GB)
CAS Latency	30
Timing	30-36-36-76
First Word Latency	10 ns
Voltage	1.35 V
Heat Spreader	Yes
ECC Support	No

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C

RAM First Word Latency Table (nanoseconds)

Latency is measured in nanoseconds, which is a combination of frequency and CAS. Both frequency increases and latency decreases result in better system performance (when latency is the same, always prefer higher frequency if possible).

Frequency (MT/s)

	4400	4800	5000	5200	5600	6000	6200	6400	6600	6800	7000	7200	7400	7600
30	13.64	12.50	12.00	11.54	10.71	10.00	9.68	9.38	9.09	8.82	8.57	8.33	8.11	7.89
31	14.09	12.92	12.40	11.92	11.07	10.33	10.00	9.69	9.39	9.12	8.86	8.61	8.38	8.16
32	14.55	13.33	12.80	12.31	11.43	10.67	10.32	10.00	9.70	9.41	9.14	8.89	8.65	8.42
33	15.00	13.75	13.20	12.69	11.79	11.00	10.65	10.31	10.00	9.71	9.43	9.17	8.92	8.68
34	15.45	14.17	13.60	13.08	12.14	11.33	10.97	10.63	10.30	10.00	9.71	9.44	9.19	8.95
35	15.91	14.58	14.00	13.46	12.50	11.67	11.29	10.94	10.61	10.29	10.00	9.72	9.46	9.21
36	16.36	15.00	14.40	13.85	12.86	12.00	11.61	11.25	10.91	10.59	10.29	10.00	9.73	9.47
37	16.82	15.42	14.80	14.23	13.21	12.33	11.94	11.56	11.21	10.88	10.57	10.28	10.00	9.74
38	17.27	15.83	15.20	14.62	13.57	12.67	12.26	11.88	11.52	11.18	10.86	10.56	10.27	10.00
39	17.73	16.25	15.60	15.00	13.93	13.00	12.58	12.19	11.82	11.47	11.14	10.83	10.54	10.26
40	18.18	16.67	16.00	15.38	14.29	13.33	12.90	12.50	12.12	11.76	11.43	11.11	10.81	10.53
41	18.64	17.08	16.40	15.77	14.64	13.67	13.23	12.81	12.42	12.06	11.71	11.39	11.08	10.79
42	19.09	17.50	16.80	16.15	15.00	14.00	13.55	13.13	12.73	12.35	12.00	11.67	11.35	11.05
43	19.55	17.92	17.20	16.54	15.36	14.33	13.87	13.44	13.03	12.65	12.29	11.94	11.62	11.32
44	20.00	18.33	17.60	16.92	15.71	14.67	14.19	13.75	13.33	12.94	12.57	12.22	11.89	11.58
45	20.45	18.75	18.00	17.31	16.07	15.00	14.52	14.06	13.64	13.24	12.86	12.50	12.16	11.84
46	20.91	19.17	18.40	17.69	16.43	15.33	14.84	14.38	13.94	13.53	13.14	12.78	12.43	12.11
47	21.36	19.58	18.80	18.08	16.79	15.67	15.16	14.69	14.24	13.82	13.43	13.06	12.70	12.37
48	21.82	20.00	19.20	18.46	17.14	16.00	15.48	15.00	14.55	14.12	13.71	13.33	12.97	12.63
49	22.27	20.42	19.60	18.85	17.50	16.33	15.81	15.31	14.85	14.41	14.00	13.61	13.24	12.89
50	22.73	20.83	20.00	19.23	17.86	16.67	16.13	15.63	15.15	14.71	14.29	13.89	13.51	13.16
51	23.18	21.25	20.40	19.62	18.21	17.00	16.45	15.94	15.45	15.00	14.57	14.17	13.78	13.42
52	23.64	21.67	20.80	20.00	18.57	17.33	16.77	16.25	15.76	15.29	14.86	14.44	14.05	13.68

CAS (clock cycles) Lower latency means faster memory.

Distribution of First Word Latencies for Similar RAM Modules

The histogram below shows the distribution of first word latencies (in nanoseconds) for all RAM modules of the same DDR type and frequency in our database. Each bar represents the number of modules that fall within a specific latency range. The highlighted bar indicates the latency of the currently selected RAM module.
