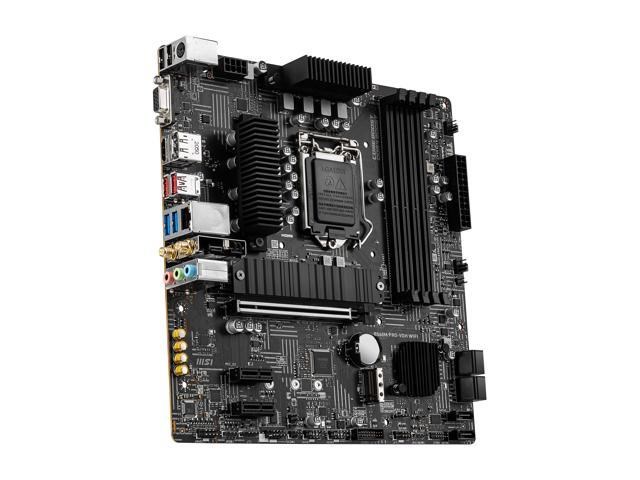

MSI B560M PRO-VDH WIFI

MSI B560M PRO-VDH WIFI LGA 1200 Micro ATX

MSI B560M PRO-VDH WIFI LGA 1200 Micro ATX

★★★★★
(3 reviews)
Seller Price Buy
Out of Stock
$129.99
+Free
Buy
Out of Stock
$129.99
+ $2.99 Shipping
Buy
Out of Stock
$140.26
+Free
Buy
Out of Stock
$149.54
Buy
Out of Stock
$171.55
+Free
Buy
-
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.
Price Alert

$

Price alerts are not available for Amazon.

  • Intel B560 Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4266+ 2DPC 2R Max speed up to 4000+

Specifications Overview

Model
  • B560M PRO-VDH WIFI
  • 7D18-001R
Release Date March 2021

* First availability for purchase, it may not correspond to the actual market launch date.

Socket LGA1200
Form factor Micro ATX
Chipset Intel B560
Supported Memory DDR4
2133Mhz 2400Mhz 2666Mhz 2933Mhz 3000Mhz 3200Mhz 3333Mhz 3466Mhz 3600Mhz 3733Mhz 4000Mhz 4266Mhz 4400Mhz 4600Mhz 5066Mhz 5333Mhz 5600Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
LAN Chipset Realtek RTL8125B
Max LAN Speed 10/100/1000/2500Mbps
SLI Support
CrossFire Support
RAID Support
Back I/O Ports
  • 1 x DisplayPort
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45)
  • 1 x PS/2 Keyboard/Mouse Combo
  • WiFi / Bluetooth
  • 2 x USB 2.0/1.1
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 3.2 Gen 2 Type-A
  • 3 x Audio Jacks
Wireless LAN
Wi-Fi Generation 6
PCI-Express x16 Slots 1
PCI-Express x4 Slots 0
PCI-Express x1 Slots 2
SATA 6 Gbps Ports 6
SATA Express Ports 0
M.2 Ports 2
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 - M Key
RAM Slots 4
Maximum Supported RAM 128 GB
Onboard USB 2.0 2
Onboard USB 3.2 Gen 1 1
Onboard USB 3.2 Gen 2 0
Onboard USB 3.2 Gen 2x2 0
