MSI MAG B760 TOMAHAWK WIFI

MSI MAG B760 TOMAHAWK WIFI ATX

MSI MAG B760 TOMAHAWK WIFI ATX

Seller Price Buy
In Stock
$179.99
+Free shipping
Buy
In Stock
$179.99
+Free shipping
Buy
In Stock
$219.99
Buy
In Stock
$350.42
+ $44.00 Shipping
Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)


Price Alert

$

Price alerts are not available for Amazon.

  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7000+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Specifications Overview

Model MAG B760 TOMAHAWK WIFI
Socket LGA1700
Form factor ATX
Chipset Intel B760
Supported Memory DDR5
4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz
* High clock speeds may require enabling the XMP profile in the motherboard BIOS
** RAM support may also depend on the CPU memory controller
ECC RAM Support
Audio Channels 7.1-Channel High Definition Audio
LAN Chipset 1 x Realtek RTL8125BG-CG 2.5Gbps LAN controller
Max LAN Speed 2.5Gbps
SLI Support
CrossFire Support
RAID Support

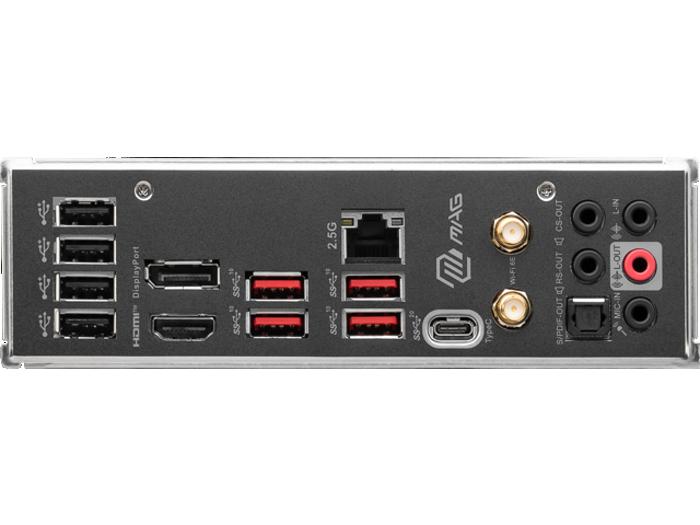

Back I/O Ports
  • 4 x USB 2.0 Type-A ports (From Hub GL850G)
  • 1 x DisplayPort port
  • 1 x HDMI port
  • 1 x 2.5Gbps LAN (RJ45) jack
  • 4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
  • 1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
  • 2 x Wi-Fi Antenna connectors
  • 5 x Audio jacks
  • 1 x Optical S/PDIF Out connector
Wireless LAN
Wi-Fi Generation 6E
PCI-Express x16 Slots 2
PCI-Express x4 Slots 0
PCI-Express x1 Slots 1
SATA 6 Gbps Ports 4
SATA Express Ports 0
M.2 Ports 4
M.2 Devices support
  • 2242 / 2260 / 2280 / 22110 - M Key
  • 2242 / 2260 / 2280 - M Key
  • 2242 / 2260 / 2280 - M Key
  • 2230 - E Key
RAM Slots 4
Maximum Supported RAM 192 GB
Onboard USB 2.0 4
Onboard USB 3.2 Gen 1 2
Onboard USB 3.2 Gen 2 1
Onboard USB 3.2 Gen 2x2 0
