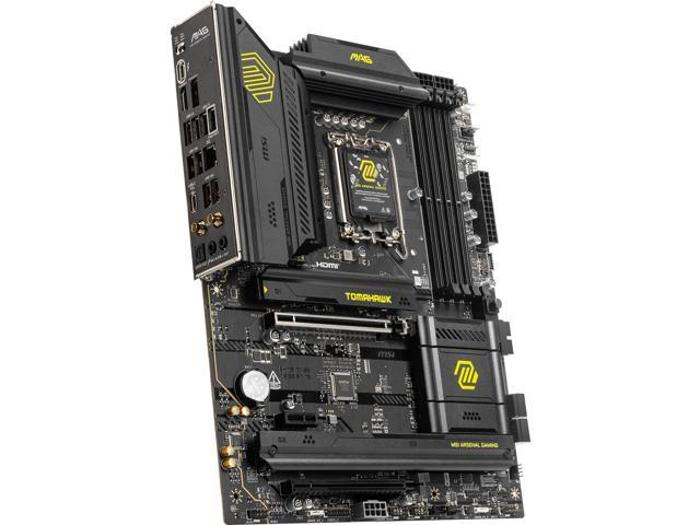

MSI MAG B860 TOMAHAWK WIFI Motherboard

MSI MAG B860 TOMAHAWK WIFI LGA1851 ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$229.99 +Free shipping	+Free	Buy
In Stock	In Stock	$229.99 +Free shipping	+Free	Buy
In Stock	In Stock	$229.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

MSI MAG B860 TOMAHAWK WIFI LGA 1851 Intel B860 SATA 6Gb/s Intel Core Ultra DDR5 ATX Motherboard Memory Standard: Up to DDR5 9200+ MT/s (OC) Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 PCI Express 4.0 x16: 2 x PCI Express 4.0 x16 Max LAN Speed: 5Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 256GB

Model	MAG B860 TOMAHAWK WIFI
Release Date	January 2025 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1851
Form factor	ATX
Chipset	Intel B860
Supported Memory	DDR5 4800Mhz 5200Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz 7000Mhz 7200Mhz 7400Mhz 7600Mhz 7800Mhz 7900Mhz 7950Mhz 8000Mhz 8200Mhz 8266Mhz 8400Mhz 8600Mhz 9200Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Killer E5000B
Max LAN Speed	5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x Clear CMOS Button 1 x DisplayPort 1 x Flash BIOS Button 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x Thunderbolt 4 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Bracket 2 x Audio Jacks 4 x USB 2.0/1.1 4 x USB 3.2 Gen 2 Type-A
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	2
PCI-Express x4 Slots	0
PCI-Express x1 Slots	1
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2280 - M Key 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0
