MSI MAG X870E Tomahawk MAX WiFi PZ Motherboard

MSI MAG X870E Tomahawk MAX WiFi PZ AM5 DDR5 8400+ MT/s (OC) PCIe 5.0 x16 M.2 Gen5 Wi-Fi 7 5G LAN ATX

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$319.99 +Free shipping	+Free	Buy
In Stock	In Stock	$319.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$319.99 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG X870E TOMAHAWK MAX WIFI PZ employs a 14 Duet Rail Power Phase with 80A SPS for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
QUADRUPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots, 2 x M.2 Gen4 x4 64Gbps slots with EZ M.2 Shield Frozr II to prevent thermal throttling
ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

MSI MAG X870E Tomahawk MAX WiFi PZ image 1

MSI MAG X870E Tomahawk MAX WiFi PZ image 2

MSI MAG X870E Tomahawk MAX WiFi PZ image 3

MSI MAG X870E Tomahawk MAX WiFi PZ image 4

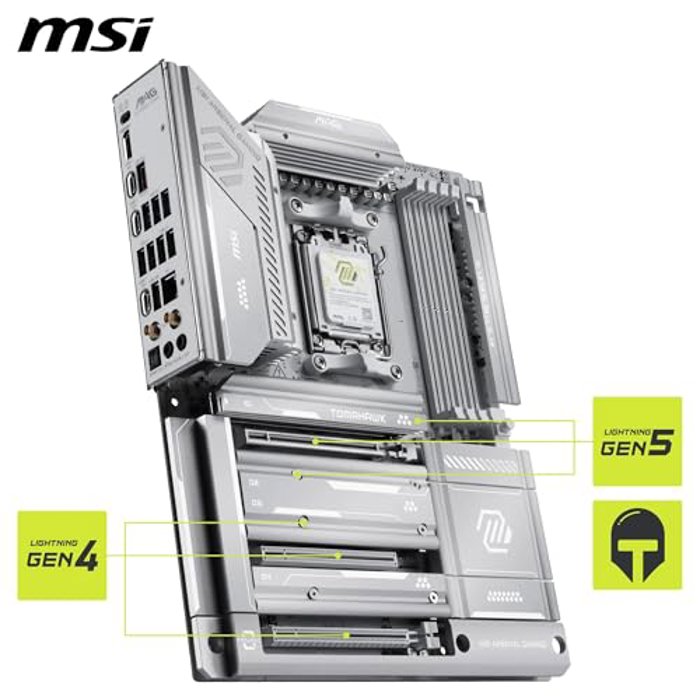

MSI MAG X870E Tomahawk MAX WiFi PZ image 5

MSI MAG X870E Tomahawk MAX WiFi PZ image 6

MSI MAG X870E Tomahawk MAX WiFi PZ image 7

Specifications Overview

Model	MAG X870E TOMAHAWK MAX WIFI PZ 7E84-002R
Release Date	October 2025 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	ATX
Chipset	AMD X870E
Supported Memory	DDR5 4800Mhz 8400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Audio Channels	7.1 Channels
Max LAN Speed	5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	Yes
Back I/O Ports	1 x Clear CMOS Button 1 x Flash BIOS Button 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Bracket 2 x Audio Jacks 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 2x2 Type-C 3 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 / 22110 - M Key 2260 / 2280 - M Key 2260 / 2280 - M Key 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	256 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
