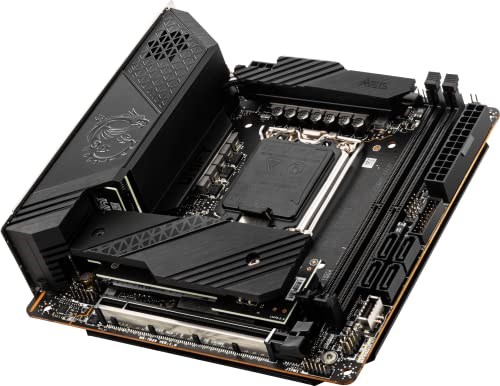

MSI MEG Z690I UNIFY Motherboard

Name: MSI MEG Z690I UNIFY
Brand: MSI
SKU: MEG Z690I UNIFY
Rating: 5.0 (5 reviews)

MSI MEG Z690I UNIFY DDR5 LGA 1700 Mini-ITX

★★★★★

(5 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$729.99 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.

Specifications Overview

Model	MEG Z690I UNIFY
Socket	LGA1700
Form factor	Mini ITX
Chipset	Intel Z690
Supported Memory	DDR5 4800Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6800Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC4080 Codec
Audio Channels	7.1 Channels
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x Clear CMOS Button 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 2 x Mini DisplayPort Input (for Thunderbolt passthrough) 2 x Thunderbolt 4 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 3 x Audio Jacks
Wireless LAN	Yes
Wi-Fi Generation	6
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2280 - M Key 2280 - M Key 2280 - M Key 2230 - E key
RAM Slots	2
Maximum Supported RAM	64 GB
Onboard USB 2.0	1
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
