MSI MPG X870I Edge TI EVO WiFi Motherboard

Name: MSI MPG X870I Edge TI EVO WiFi
Brand: MSI
SKU: MPG X870I EDGE TI EVO WIFI
Rating: 5.0 (1 reviews)

MSI MPG X870I Edge TI EVO WiFi AM5 DDR5 PCIe 5.0 x16 M.2 Gen5 Wi-Fi 7 5G LAN mini ITX

★★★★★

(1 reviews)

Seller	Availability	Price	Shipping	Buy
In Stock	In Stock	$369.99		Buy
Last updated 39 minutes ago.
In Stock	In Stock	$369.99 +Free shipping	+Free	Buy
In Stock	In Stock	$369.99 +Free shipping	+Free	Buy
In Stock	In Stock	$392.49	-	Buy
In Stock	In Stock	$399.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$420.92 +Free shipping	+Free	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MPG X870I EDGE TI EVO WIFI employs an 8 Duet Rail Power System (110A, SPS) VRM for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, an Extended Heatsink with Heat-pipe and Frozr Heatink; EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 10000+ MT/s); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor support cutting-edge graphics cards

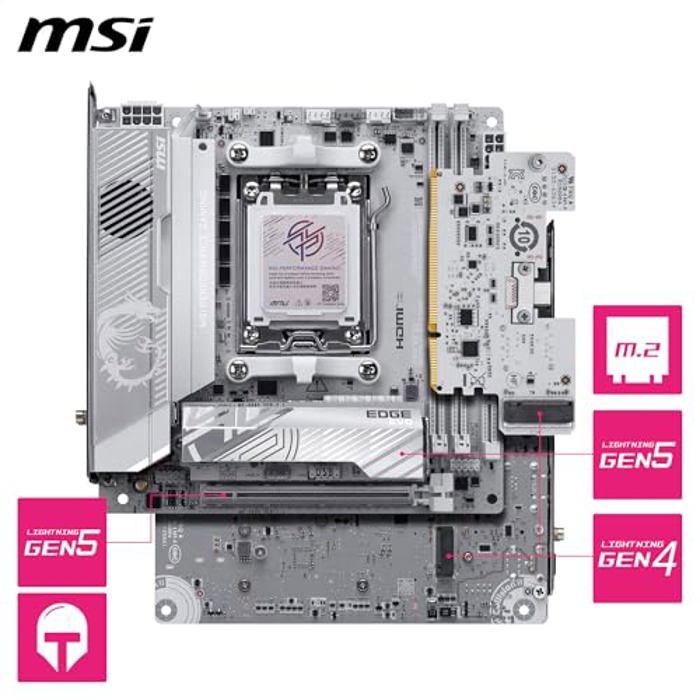

TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot and 2 x M.2 Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER Card) ; Features EZ M.2 Shield Frozr II for EZ DIY experience
ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5. & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

Specifications Overview

Model	MPG X870I EDGE TI EVO WIFI MPG X870I Edge TI EVO 7E50-001R
Release Date	January 2026 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	AM5
Form factor	Mini ITX
Chipset	AMD X870
Supported Memory	DDR5 4400Mhz 4800Mhz 5200Mhz 5600Mhz 6000Mhz 6200Mhz 6400Mhz 6600Mhz 6666Mhz 6800Mhz 7000Mhz 7200Mhz 7600Mhz 7800Mhz 8000Mhz 8200Mhz 8400Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Channels	7.1 Channels
Max LAN Speed	5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No

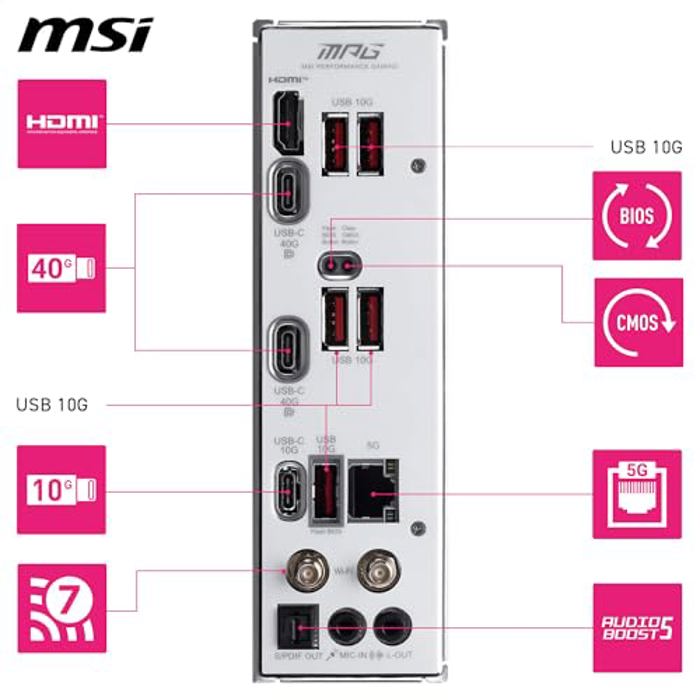

Back I/O Ports	1 x Clear CMOS Button 1 x Flash BIOS Button 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x USB 3.2 Gen 2 Type-C 2 x Audio Jacks 2 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 2 Type-A
Wireless LAN	Yes
Wi-Fi Generation	7
PCI-Express x16 Slots	1
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	2
SATA Express Ports	0
M.2 Ports	3
M.2 Devices support	2280 - M Key 2280 - M Key 2280 - M Key
RAM Slots	2
Maximum Supported RAM	128 GB
Onboard USB 2.0	1
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	0
Onboard USB 3.2 Gen 2x2	1

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
