MSI MPG Z490 Carbon EK X Motherboard

Name: MSI MPG Z490 Carbon EK X
Brand: MSI
SKU: MPG Z490 CARBON EK X
Rating: 5.0 (6 reviews)

MSI MPG Z490 Carbon EK X LGA 1200 DDR4 SLI CFX Dual M.2 Slots USB 3.2 Gen 2 2.5G LAN DP/HDMI Mystic Light RGB ATX

★★★★★

(6 reviews)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$425.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$439.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$449.00 +Free shipping	+Free	Buy
		-	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

* Product prices and availability are subject to change frequently. Any price and availability information displayed on Amazon at the time of purchase will apply.

Supports 10Th Gen Intel Core / Pentium Celeron Processors For LGA 1200 Socket
Supports DDR4 Memory, Up To 5000(OC) Mhz
Ready 4 The Future: Support Lightning Gen 4 Solution For The Future

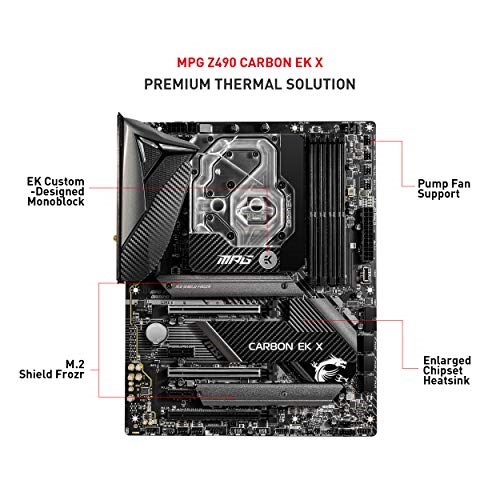

CPU + VRM Water Cooling: A Custom-Designed EK Monoblock That Offers Pristine Cooling For Both The CPU And VRM Power Delivery Section
Mystic Light: 16.8 Million Colors / 29 Effects Controlled In One Click. Mystic Light Extension Supports Both RGB And Rainbow LED Strip

Specifications Overview

Model	MPG Z490 CARBON EK X 7C73-008R
Release Date	August 2020 * First availability for purchase, it may not correspond to the actual market launch date.
Socket	LGA1200
Form factor	ATX
Chipset	Intel Z490
Supported Memory	DDR4 2133Mhz 2400Mhz 2666Mhz 2933Mhz 3000Mhz 3200Mhz 3300Mhz 3333Mhz 3400Mhz 3466Mhz 3600Mhz 3733Mhz 3866Mhz 4000Mhz 4133Mhz 4200Mhz 4266Mhz 4300Mhz 4400Mhz 4533Mhz 4600Mhz 4800Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-Channel High Definition Audio Supports S/PDIF output
LAN Chipset	Realtek RTL8125B
Max LAN Speed	10/100/1000/2500Mbps
SLI Support	Yes
CrossFire Support	Yes
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 2.0/1.1 4 x USB 3.2 Gen 2 Type-A 5 x Audio Jacks
Wireless LAN	Yes
Wi-Fi Generation	6
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	2
SATA 6 Gbps Ports	6
SATA Express Ports	0
M.2 Ports	2
M.2 Devices support	2242 / 2260 / 2280 / 22110 - M Key 2242 / 2260 / 2280 - M Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	2
Onboard USB 3.2 Gen 1	1
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
