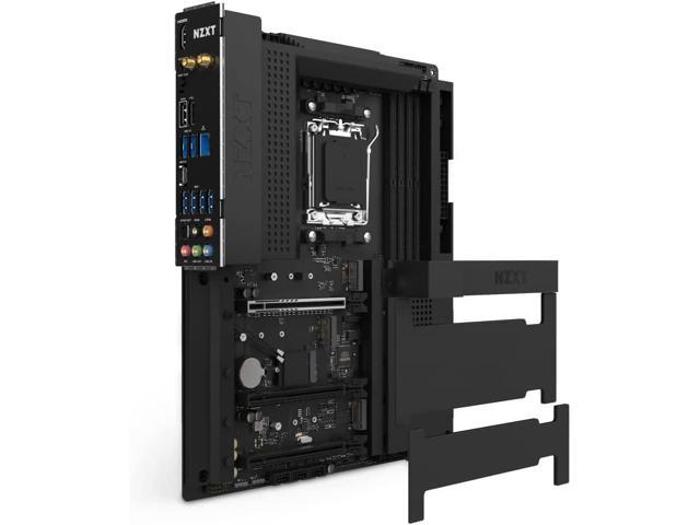

NZXT N7 B650E Motherboard

Name: NZXT N7 B650E
Brand: NZXT
SKU: N7-B65XT-B1
Rating: 4.0 (2 reviews)

NZXT N7 B650E AMD Socket AM5 DDR5 ATX N7-B65XT-B1

★★★★☆

(2 reviews)

Seller	Availability	Price	Shipping	Buy
Out of Stock	Out of Stock	$249.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$316.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$319.99 +Free shipping	+Free	Buy
Out of Stock	Out of Stock	$319.99	-	Buy

* Pangoly may earn a commission when you use one of the links to make a purchase. (Disclosure)

Seamless cover with integrated heat spreader
Digital RGB lighting control through CAM
Digital fan control for convenient fan profiles with seven independent fan channels
Integrated rear I/O shield and efficient layout
16+2+1 Power phase design with 90A Smart Power Stage(SPS)

Model	N7-B65XT-B1
Socket	AM5
Form factor	ATX
Chipset	AMD B650E
Supported Memory	DDR5 4800Mhz 5000Mhz 5200Mhz 5400Mhz 5600Mhz 5800Mhz 6000Mhz View compatible RAM ► * High clock speeds may require enabling the XMP profile in the motherboard BIOS ** RAM support may also depend on the CPU memory controller
ECC RAM Support	No
Audio Chipset	Realtek ALC1220
LAN Chipset	Realtek 8125BG
Max LAN Speed	2.5Gbps
SLI Support	No
CrossFire Support	No
RAID Support	Yes
Back Connect	No
Back I/O Ports	1 x Clear CMOS Button 1 x Flash BIOS Button 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Bracket 2 x USB 2.0/1.1 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 5 x Audio Jacks
Wireless LAN	Yes
Wi-Fi Generation	6E
PCI-Express x16 Slots	3
PCI-Express x4 Slots	0
PCI-Express x1 Slots	0
SATA 6 Gbps Ports	4
SATA Express Ports	0
M.2 Ports	4
M.2 Devices support	2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2242 / 2260 / 2280 - M Key 2230 - E Key
RAM Slots	4
Maximum Supported RAM	128 GB
Onboard USB 2.0	0
Onboard USB 3.2 Gen 1	2
Onboard USB 3.2 Gen 2	1
Onboard USB 3.2 Gen 2x2	0

	Old Name	Current Name	Branding	Data Speed	Port
USB 2.0	USB 2.0	USB 2.0	Hi-Speed USB	480 Mbit/s	diverse
USB 3.0	USB 3.1 Gen 1	USB 3.2 Gen 1x1	SuperSpeed USB	5 Gbit/s	diverse
USB 3.1	USB 3.1 Gen 2	USB 3.2 Gen 2x1	SuperSpeed USB 10Gbps	10 Gbit/s	diverse
USB 3.2	USB 3.2 Gen 2x2	USB 4.0 Gen 2x2	USB4 20Gbps	20 Gbit/s	only USB-C
USB4	USB 4.0 Gen 3x2	USB4 1.0	USB4 40Gbps	40 Gbit/s	only USB-C
USB4v2	USB 4.0 Gen 4	USB4 2.0	USB4 80Gbps	80-120 Gbit/s	only USB-C
